Parts List for Sealey HS102.V3 Hot Air Gun
Access the official parts list and exploded diagram for the Sealey HS102.V3 2000W Hot Air Gun. Identify components for maintenance and repair.
Quick answers from the manual
Quick answer
- This document is a parts list for the Sealey HS102.V3 Hot Air Gun, providing an exploded view and a table of component part numbers. p. 1
Key actions
- Identify parts for repair p. 1
Maintenance and reset
- Parts must be fitted by a competent person. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 2000W | Power consumption | p. 1 |
| Temperature Range | 50-600°C | Variable heat settings | p. 1 |
Where to find it in the PDF
- Parts Diagram and List p. 1
Table of contents
Parts Information and Exploded View
This document provides a detailed exploded view and parts list for the Sealey HS102.V3 Hot Air Gun. It is intended for identifying components for maintenance and repair purposes.
Important Safety and Warranty Information
- Parts must be fitted by a competent person.
- The product is covered by a 12-month guarantee from the date of purchase.
- Proof of purchase is required for any warranty claims.
Component Identification

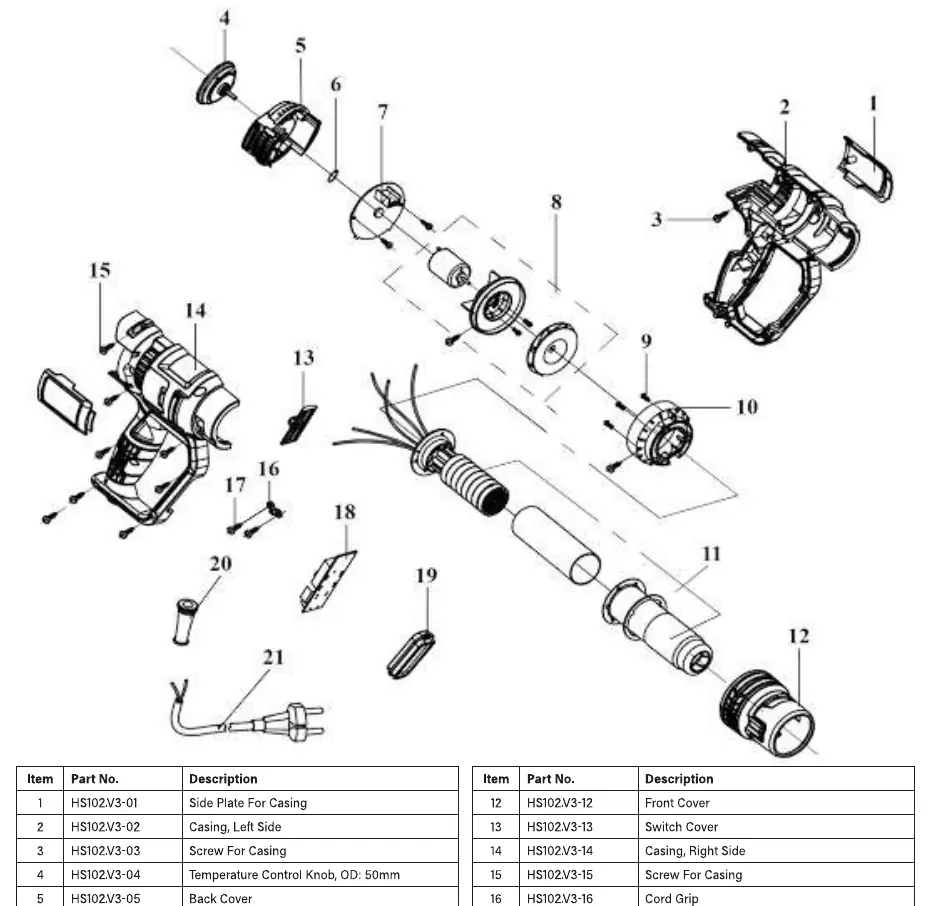

The exploded diagram illustrates the assembly of the hot air gun. Key components include:
- 1: Side Plate For Casing
- 4: Temperature Control Knob
- 8: Motor/Fan Assembly
- 11: Heating Element Assembly
- 18: Switch Assembly
- 21: Power Cable
Refer to the full parts table in the document for the complete list of 21 items, including specific part numbers for ordering replacements.
