Sealey 1020LE.V3 Series 2 Tonne Low Profile Short Chassis Trolley Jack Parts List
Parts list and exploded view diagram for the Sealey 1020LE.V3 series 2 Tonne Low Profile Short Chassis Trolley Jack. Identify components, part numbers, and assembly structure for maintenance and repair.
Table of contents
Quick guide from the manual
This document provides a detailed parts list and an exploded view diagram for the Sealey 1020LE.V3 series 2 Tonne Low Profile Short Chassis Trolley Jack. It is intended for identifying components for maintenance and repair purposes.
Parts Identification

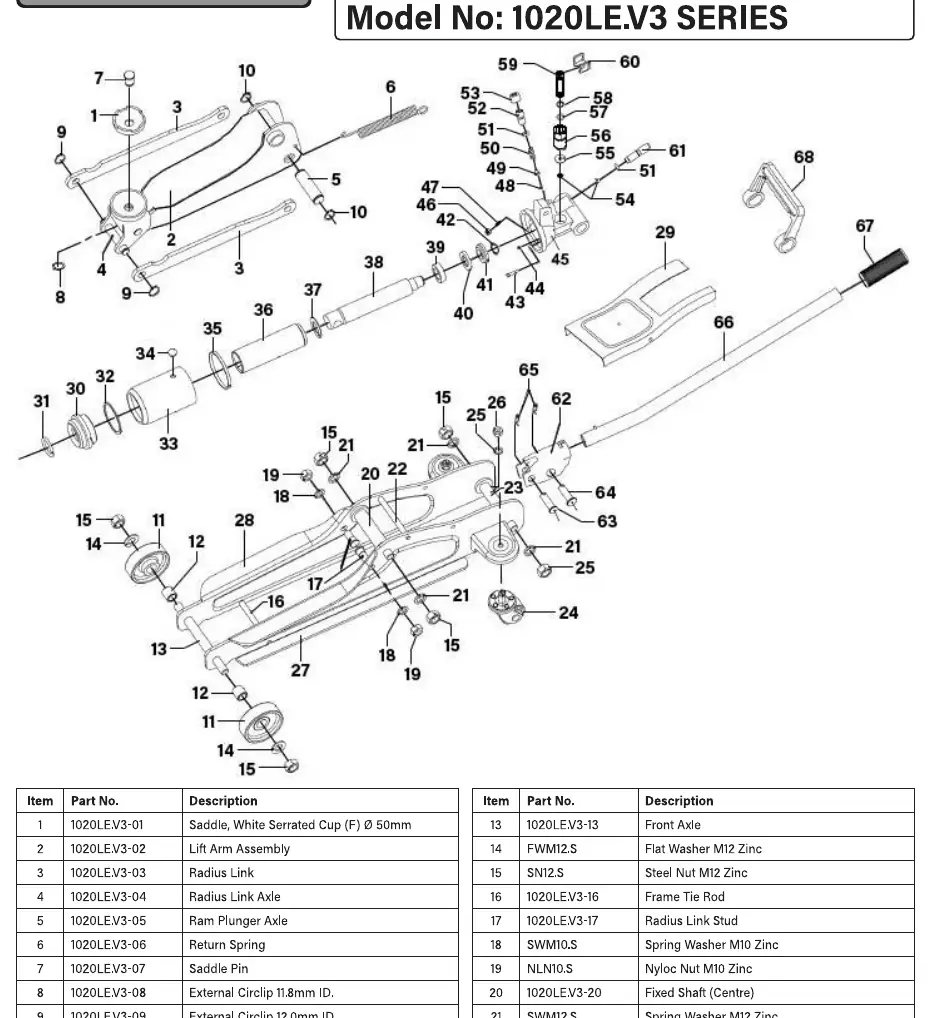

The document contains a comprehensive exploded view diagram of the trolley jack. Each component is numbered, corresponding to the item numbers in the provided parts list. Use this diagram to locate specific parts such as the saddle, lift arm, wheels, and hydraulic unit components.
Maintenance and Safety
Important notes regarding the use of this document and the product:
- Spare parts must be fitted by a competent person.
- The manufacturer reserves the right to alter data, specifications, and component parts without prior notice.
- There may be alternative versions of this product; contact the manufacturer if you require specific information.
Contact Information
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk, IP32 7AR. Phone: 01284 757500. Email: [email protected]. Website: www.sealey.co.uk.
Official resources from the manual
Manufacturer information
Sealey Group
Practical help
Before use
- Verify the model number matches your unit (1020LE.V3 series).
- Ensure you have a competent person available for fitting spare parts.
- Check the exploded diagram to identify the specific part number required.
Images and diagrams
- The exploded view shows the assembly of the lift arm, hydraulic unit, and chassis components.
- Item numbers in the diagram correspond directly to the 'Item' column in the parts list table.
