Installation Manual for SHAD Top Case Mounting Kit for Keeway City Blade 125i '15
Quick installation guide for the SHAD top case mounting kit (KOCT15ST) designed for the Keeway City Blade 125i '15. Includes a parts list, assembly steps, and critical safety warnings for proper fitment.
Table of contents
Important Installation Information
Warning: Do not fully tighten the screws until the kit is correctly attached and aligned on the motorcycle rack. This ensures proper fitment and prevents damage to the mounting points.
Parts List
- 1: Mounting Plate
- 2: Spacer (Ø16 Ø9 x 15)
- 3: Washer (Ø6)
- 4: Nut (M6)
- 5: Screw (M6 x 45)
- 6: Spacer (Ø18 Ø11 x 45)
- 7: Washer (Ø8)
- 8: Screw (M8 x 75)

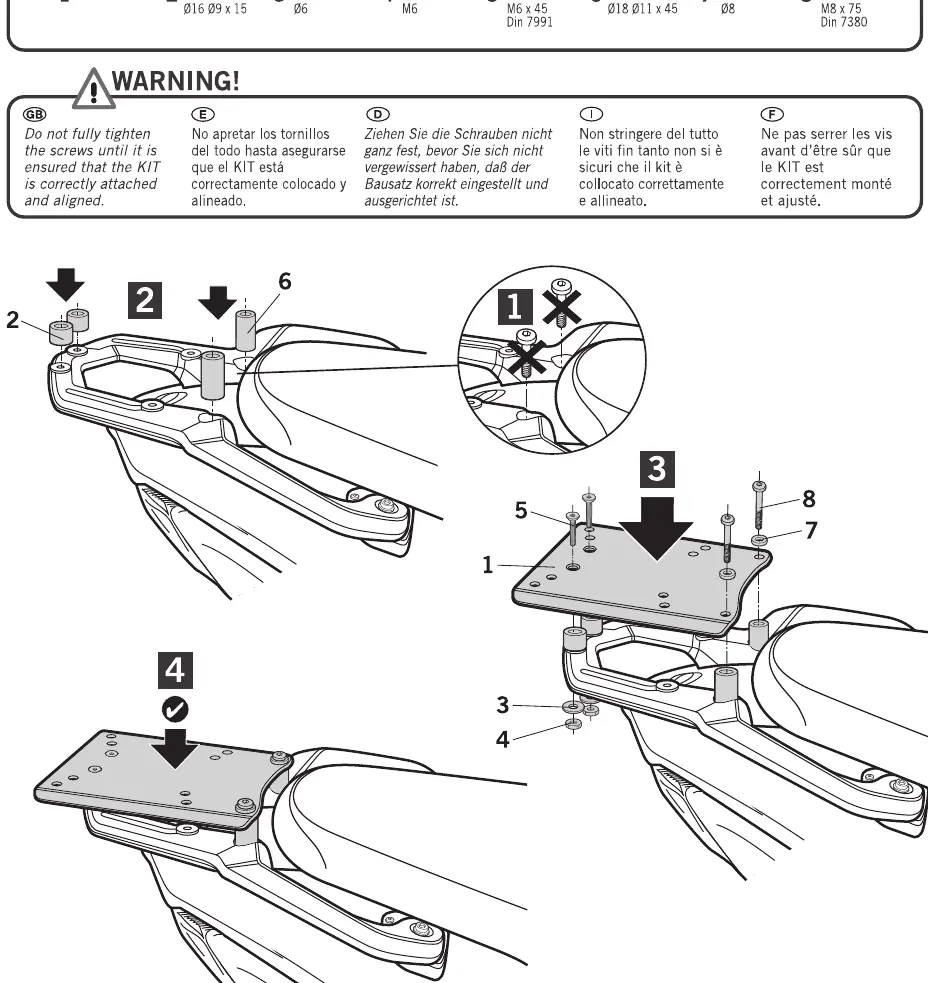

Installation Steps
- Identify the mounting points on the motorcycle rack.
- Place the spacers (2) and (6) onto the designated points of the rack.
- Position the mounting plate (1) over the spacers.
- Insert the screws (8) with washers (7) through the mounting plate and the spacers.
- Secure the assembly from the underside using washers (3) and nuts (4).
- Once the kit is correctly positioned and aligned, fully tighten all screws to secure the assembly.
Manufacturer information
SHAD
Practical help
Common problems
Ensure screws are not fully tightened until the entire assembly is positioned correctly on the rack.
Verify that spacers (2) and (6) are placed in the correct positions before inserting screws.
Before use
- Verify all parts (1-8) are present according to the parts list
- Ensure the motorcycle rack is clean and free of debris
- Check that you have the correct tools for M6 and M8 fasteners
