Silverstone 12VHPWR/12V-2x6 Connector Installation Guide
Essential safety and installation guidelines for the Silverstone 12VHPWR/12V-2x6 connector, focusing on proper cable management and bending radius requirements to prevent damage.
Quick guide from the manual
This document provides critical safety instructions for the installation and cable management of the Silverstone 12VHPWR/12V-2x6 connector. Due to the high-density design of this connector, strict adherence to cable bending guidelines is required to prevent damage to the hardware.

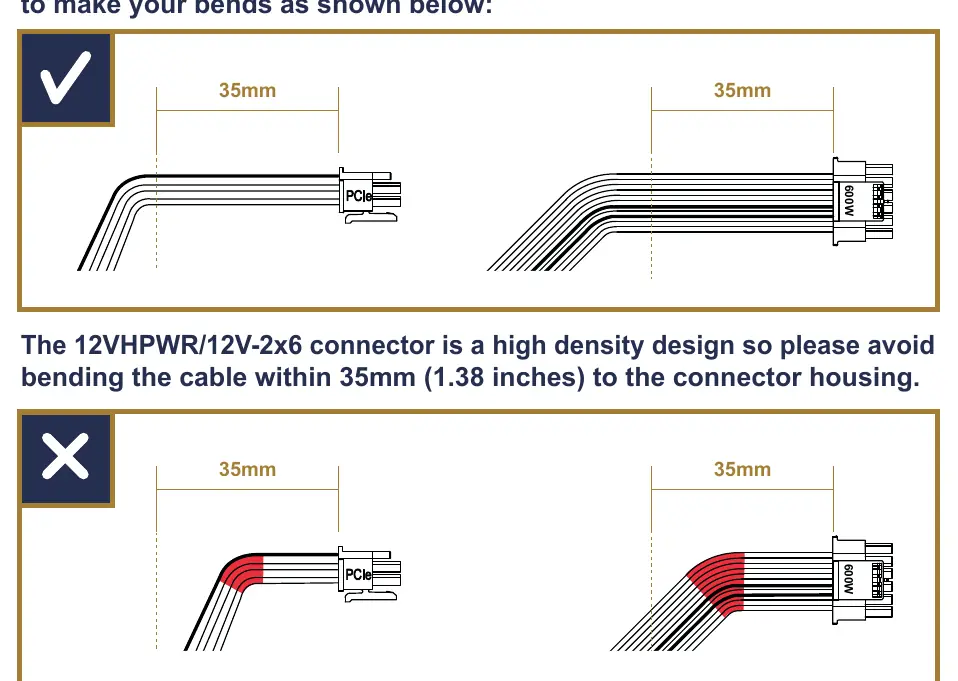

Cable management and bending requirements
The most important safety requirement for the 12VHPWR/12V-2x6 connector is the maintenance of a minimum straight distance from the connector housing before any bending occurs.
- Minimum straight length: You must leave at least 35mm (1.38 inches) of straight cable extending from the connector housing before applying any bend.
- Bending restriction: Do not bend the cable within the 35mm zone immediately adjacent to the connector housing.
- Reasoning: The high-density pin configuration is sensitive to mechanical stress caused by sharp bends near the connection point.
Manufacturer information
SilverStone Technology Co., Ltd.
Practical help
Common problems
Ensure the cable is not bent within 35mm of the connector housing to avoid mechanical stress on the high-density pins.
Before use
- Measure 35mm (1.38 inches) from the connector housing before starting any cable routing.
- Ensure the cable path allows for a straight exit from the connector for at least 35mm.
- Verify that no tension or sharp angles are applied to the connector housing.
