Sloan 140-1.28-RB-4-3/4-LDIM Flushometer Manual
Quick guide for the Sloan 140-1.28-RB-4-3/4-LDIM concealed manual water closet flushometer. Includes technical specifications, operating pressure requirements, and rough-in dimensions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

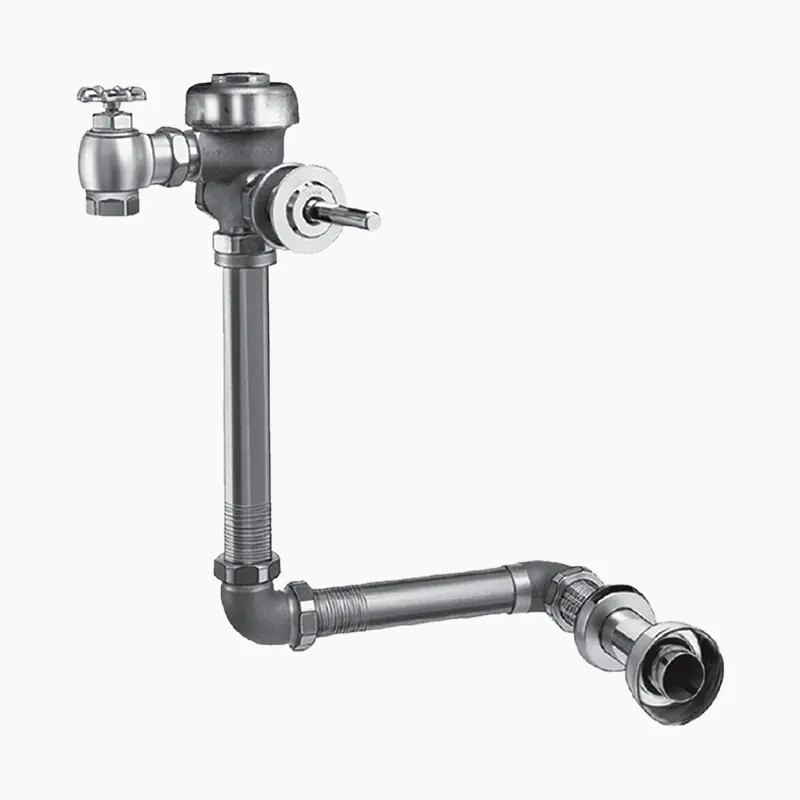

This document provides technical specifications and installation dimensions for the Sloan 140-1.28-RB-4-3/4-LDIM concealed manual water closet flushometer. Ensure your plumbing system meets the required operating pressure and rough-in dimensions before installation.
Product specifications
- Flush Volume: 1.28 gpf (4.8 lpf)
- Valve Type: Diaphragm
- Material: Semi-red brass body, cover, tailpiece, and control stop
- Finish: Rough Brass (RB)
- Fixture Connection: Rear Spud
- Supply Pipe: 1 inch (25mm)
- Spud Coupling: 1.5 inch (38mm)
Operating requirements
The valve requires a flowing water pressure between 15-80 psi (103-552 kPa) to operate correctly. Specific fixtures may require higher minimum flowing pressure; always consult the fixture manufacturer's requirements.
Rough-in dimensions

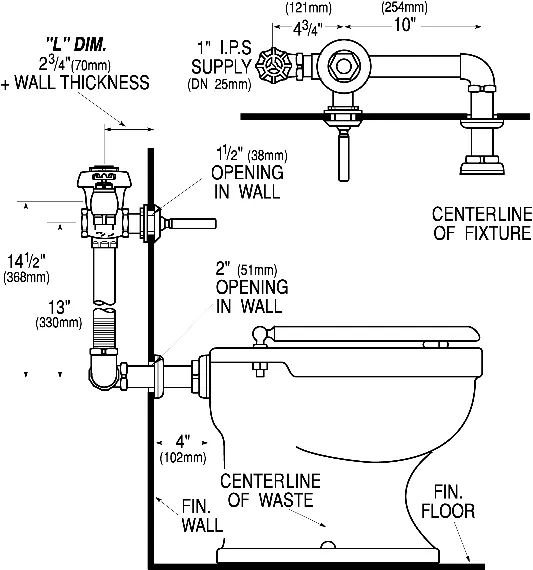

The unit requires a 14.5 inch (368mm) rough-in dimension. The L-dimension is 4.75 inches (121mm). Refer to the rough-in and line drawing for precise positioning of the supply pipe relative to the fixture centerline and finished wall.
Features
- ADA Compliant: Features a non-hold-open handle for water conservation.
- CID Technology: Controls flush accuracy for enhanced water efficiency.
- Durability: High copper, low zinc brass castings for dezincification resistance.
- PERMEX Diaphragm: Synthetic rubber diaphragm with linear filtered bypass and vortex cleansing action for high chloramine resistance.
Practical help
Common problems
Verify that the flowing water pressure is within the 15-80 psi range.
Ensure the rough-in dimension is exactly 14.5 inches and the L-dimension is 4.75 inches.
Before use
- Verify water supply pressure is between 15-80 psi
- Confirm rough-in dimension is 14.5 inches
- Ensure the fixture is a compatible water closet
- Check that the supply pipe is 1 inch
- Confirm the L-dimension is 4.75 inches
