This document provides technical specifications, operating requirements, and installation dimensions for the Sloan Royal 111-1.6-PB flushometer. It is essential for verifying compatibility with your existing plumbing and fixture setup before installation.
Product Overview
The Royal 111-1.6-PB is an exposed manual water closet flushometer. It features a polished brass finish and is designed for use with top spud fixtures.
Technical Specifications
- Flush Volume: 1.6 gpf (6.0 lpf)
- Finish: Polished Brass (PB)
- Valve Type: Diaphragm
- Valve Body Material: Semi-red Brass
- Fixture Type: Water Closet
- Fixture Connection: Top Spud
- Spud Coupling: 1.5" (38mm)
- Supply Pipe: 1" (25mm)
Operating Requirements
The valve requires a flowing water pressure between 15-80 psi (103-552 kPa). Specific fixtures may require higher minimum flowing pressure; always consult the fixture manufacturer's requirements.
Features
- ADA-Compliant Handle: Non-hold-open design prevents the toilet from exceeding the intended flush volume.
- CID Technology: Controls flush accuracy to enhance water efficiency.
- Vandal-Resistant Stop Cap: Maintains product integrity.
- PERMEX Synthetic Rubber Diaphragm: Features a dual-filtered fixed bypass for durability.
Rough-in Dimensions
The standard rough-in dimension for this unit is 11.5" (292mm) from the centerline of the waste to the supply inlet.
Practical help
Before use
- Verify water supply pressure is between 15-80 psi (103-552 kPa).
- Ensure fixture is a top spud water closet.
- Check that supply pipe is 1 inch (25mm).
- Confirm rough-in dimension is 11.5 inches (292mm).
Images and diagrams

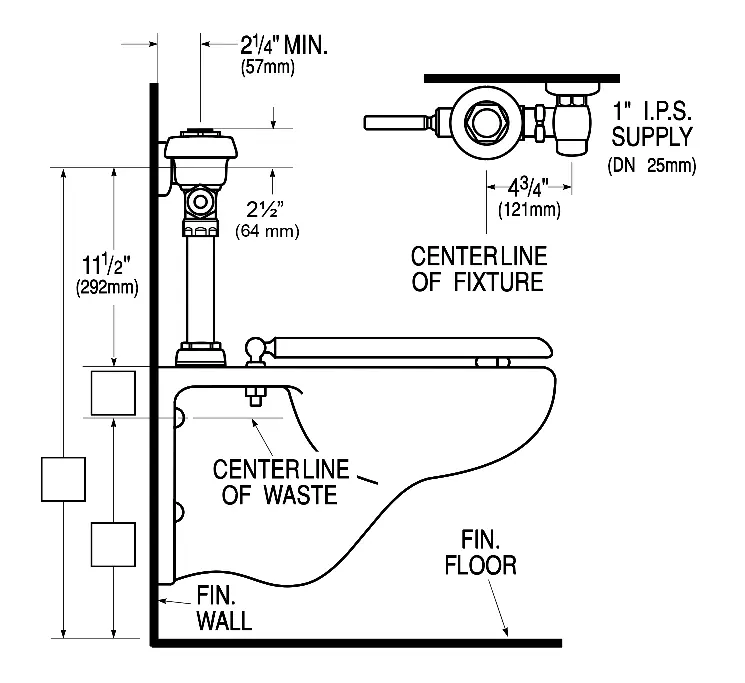

- The rough-in drawing illustrates the required distance from the finished wall to the centerline of the fixture (11.5 inches) and the supply pipe location.
