This document provides technical specifications, operating requirements, and rough-in dimensions for the Sloan ROYAL 130-3.5-CP manual flushometer. It is intended for planning and installation reference.

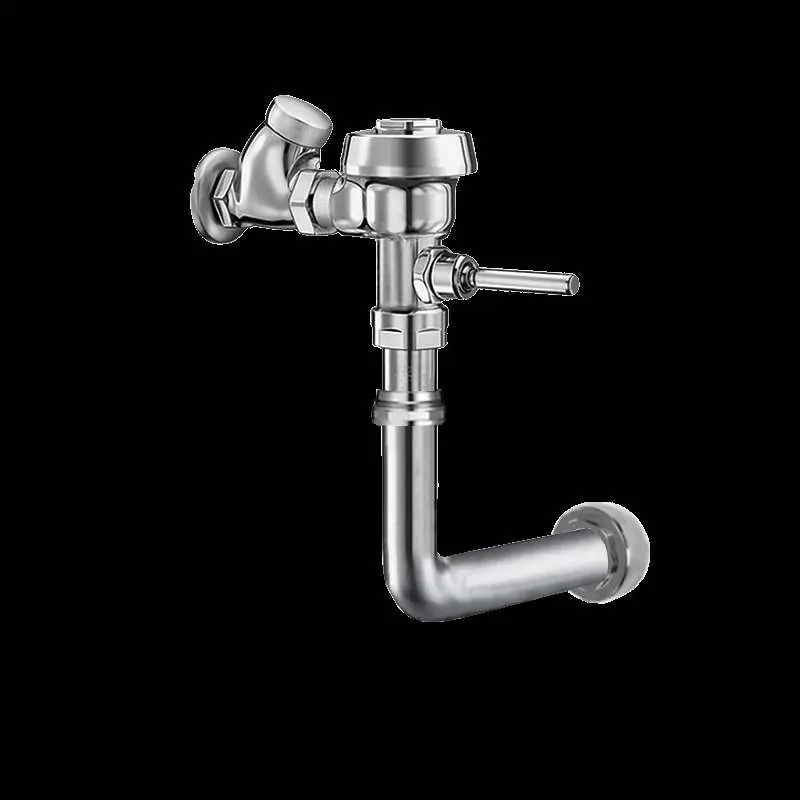

Product Overview
The ROYAL 130-3.5-CP is a manual water closet flushometer designed for side spud fixture connections. It features a PERMEX synthetic rubber diaphragm with a dual-filtered fixed bypass for reliable operation.
Technical Specifications
- Flush Volume: 3.5 gpf (13.2 lpf)
- Finish: Polished Chrome (CP)
- Valve Type: Diaphragm
- Material: Semi-red Brass (Valve body, cover, tailpiece, and control stop)
- Fixture Type: Water Closet
- Fixture Connection: Side Spud
- Compliance: ADA, BAA, IAPMO, UPC
Operating Requirements
Valve Operating Pressure (Flowing): 15-80 psi (103 - 552 kPa).
Note: Specific fixtures may require higher minimum flowing pressure; always consult the manufacturer's requirements for the specific fixture being installed.

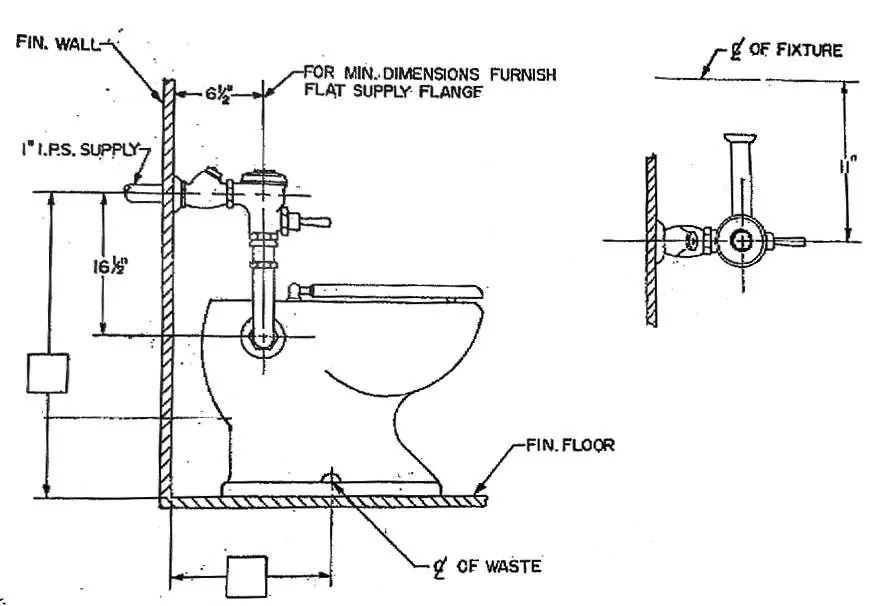

Installation Rough-in
Refer to the provided line drawing for critical installation dimensions. Ensure the supply flange is positioned correctly relative to the fixture to ensure proper connection and operation.
Practical help
Before use
- Verify water supply pressure is between 15-80 psi (flowing).
- Ensure the fixture is a water closet with a side spud connection.
- Check that the installation area meets the rough-in dimensions provided in the line drawing.
Specs in practice
- Flush Volume
- 3.5 gallons per flush (13.2 liters per flush).
- Operating Pressure
- The required water pressure while the valve is flowing (15-80 psi).
- Fixture Connection
- Side Spud connection type for the water closet.
