Quick Reference Guide for Haier Smart Power Outdoor 3Phase 24.0 kW
Quick reference guide for the Haier Smart Power Outdoor 3Phase 24.0 kW unit. Includes technical specifications, dimensions, power requirements, and operating temperature ranges.
Table of contents
Quick guide from the manual
This document serves as a quick reference guide for the Haier Smart Power Outdoor 3Phase 24.0 kW unit. It outlines the essential technical specifications, physical dimensions, and power requirements necessary for installation and planning.
Technical Specifications
The unit is designed for high-capacity performance with the following specifications:
- Cooling Capacity: 24 kW
- Heating Capacity: 26.8 kW
- COP: 3.73
- EER: 3.21
- Refrigerant: R410a
Dimensions and Power
Ensure the installation site can accommodate the following dimensions:
- Height: 1635 mm
- Width: 1050 mm
- Depth: 400 mm
Power Requirements: The unit requires a Three-phase power supply with a 12A draw and 50/60Hz frequency.
Operating Conditions
The unit is rated for the following ambient temperature ranges:
- Cooling: -15°C to +50°C
- Heating: -20°C to +24°C
Support
For further assistance, contact customer support at 0800 372273 or visit haier.com.
Official resources from the manual
Practical help
Before use
- Verify power supply is Three Phase
- Ensure installation location allows for dimensions (1635mm x 1050mm x 400mm)
- Check operating temperature range requirements
Images and diagrams

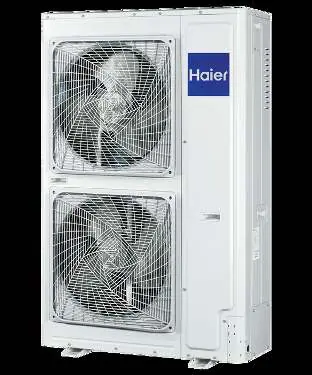

- The unit features a dual-fan outdoor design.
- Dimensions are provided for height, width, and depth.
