Installation Manual for Sommer Rail Extension Kit
Quick installation guide for the Sommer rail extension kit. Includes assembly steps, compatibility list, and tool requirements for extending your garage door operator rail.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for installing the rail extension kit for Sommer garage door operators. The kit is designed to extend the rail length to accommodate larger garage doors. Ensure you have all components before beginning the installation.
Tools required
- 13 mm or 1/2 inch wrench
Installation steps
- Rail Assembly: Connect the rail segments securely. Ensure the alignment is straight and the segments are locked together as shown in the diagram.

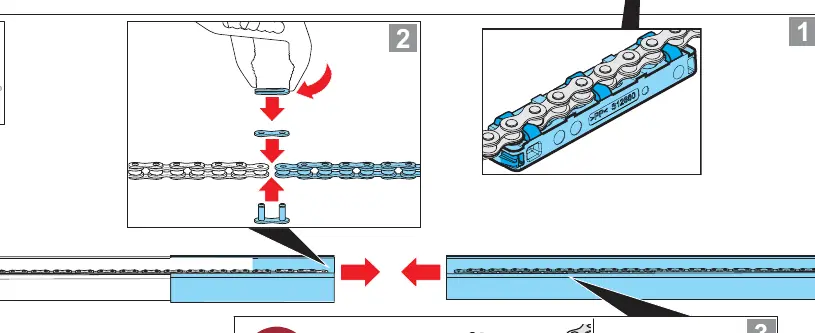

- Chain Connection: Connect the chain segments. Ensure the locking mechanism is fully engaged and the chain is properly seated in the rail guide.

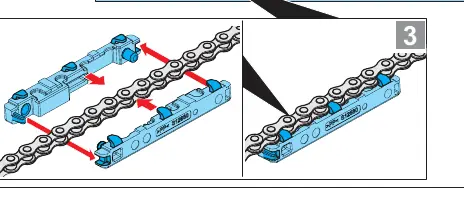

- Final Check: Verify the assembly is secure and the chain moves freely along the rail before attempting to operate the garage door.
Compatibility
This kit is compatible with the following Sommer garage door operator series:
- S 9050 / S 9060 / S 9080 / S 9110 (base+, pro+, tiga, tiga+)
- A 400 S / A 550 L / A 800 XL
- North American models: 2060, 2080, 2010, evo, evo+
Practical help
Common problems
Ensure the chain segments are correctly aligned and the locking mechanism is fully engaged as shown in step 2.
Verify that rail segments are securely connected and straight before mounting the rail to the ceiling.
Before use
- Verify compatibility with your specific operator model
- Ensure you have a 13mm / 1/2 inch wrench
- Check that all parts from the kit are present
- Ensure the garage door operator is powered off before starting
