StarTech.com 1U Rack-Mount Metered PDU with LCD Display & Surge Protection

Product Overview

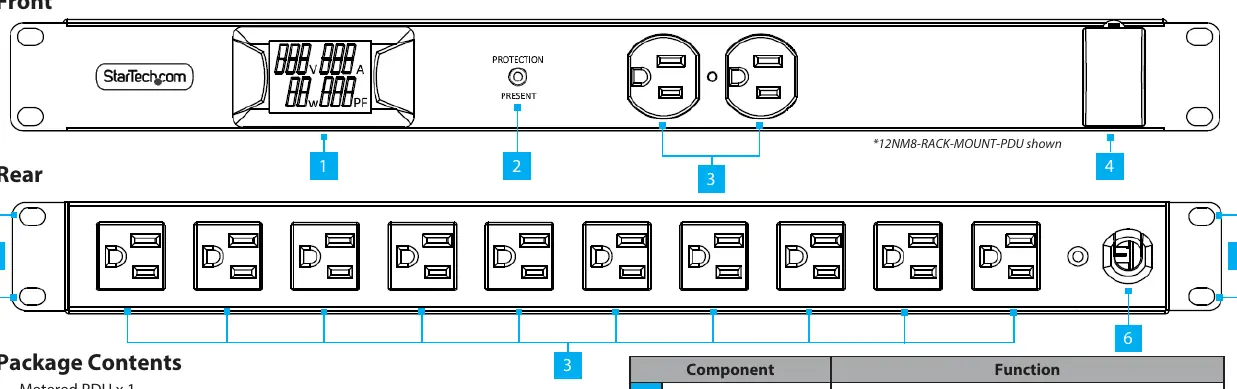

The StarTech.com 1U Rack-Mount Metered PDU is designed to provide reliable power distribution for rack-mounted equipment. It features an integrated LCD display that provides real-time monitoring of voltage, amperage, wattage, and power factor. The unit includes built-in surge protection, indicated by a Protection Present LED, and a circuit breaker to protect connected devices from power surges.

Technical Specifications

• Input/Output: NEMA 5-15P input cable and NEMA 5-15R outlets.
• Capacity: 125V AC / 15A.
• Form Factor: 1U rack-mount, EIA-310 compliant.
• Monitoring: Real-time LCD display for Volts, Amps, Watts, and Power Factor.
• Protection: Surge protection with status LED and a 15A circuit breaker with switch guard.

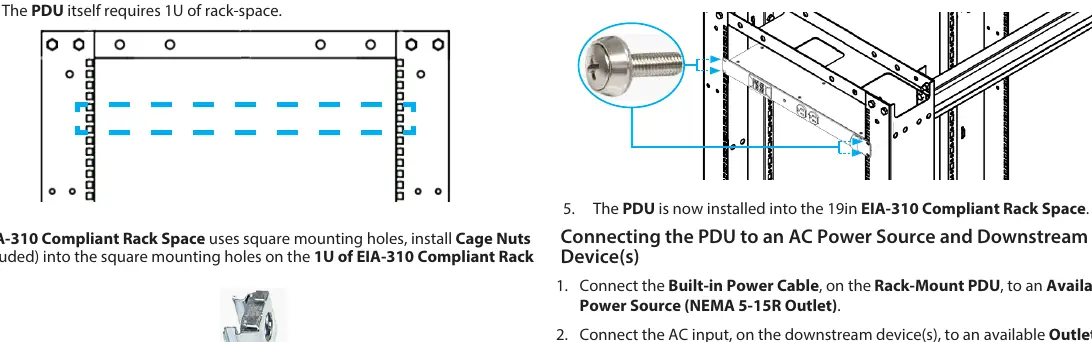

Installation

The PDU requires 1U of rack space. To install:

• Identify a suitable location within an EIA-310 compliant rack.
• If the rack features square mounting holes, install cage nuts (not included).
• Align the PDU's built-in 19-inch mounting brackets with the rack's mounting points.
• Secure the unit using cabinet screws, ensuring it is tightened and stable.
• Connect the built-in power cable to a NEMA 5-15R AC power source.
• Connect downstream devices to the PDU outlets.

Operation and Safety

The PDU is intended for indoor use only. Do not use the device outdoors. If the product has an exposed circuit board, never touch it while the unit is powered. The circuit breaker acts as a master switch for all power; if a surge occurs, the breaker will trip. To reset, push the breaker button. The Protection Present LED should remain solid green during normal operation; if it is off, the surge protection may be damaged.

Maintenance and Disposal

Ensure all screws are properly tightened during periodic inspections. The product is backed by a two-year warranty. For disposal, follow local regulations regarding electronic waste, as the unit contains components that should be recycled appropriately.
