Sunco Lighting 150W UFO High Bay LED Fixture
Comprehensive guide for the Sunco 150W UFO High Bay LED, covering technical specifications, installation, performance metrics, and environmental ratings.
Table of contents
Product Overview
The Sunco 150W UFO High Bay LED Fixture is a high-performance, low-profile lighting solution designed for versatile indoor and outdoor applications. It is ideal for use in warehouses, gymnasiums, retail spaces, gas stations, and highway toll stations. The fixture features a wide 90-degree beam spread, providing efficient and uniform illumination across large areas.
Technical Specifications
This fixture is engineered for durability and high output. Key technical details include:
- Voltage: AC120-277V
- Wattage: 150W
- Lumens: 21000lm
- Efficacy: 145 lm/W
- Color Temperature: 5000K
- Color Rendering Index (CRI): 80+
- Power Factor: >90

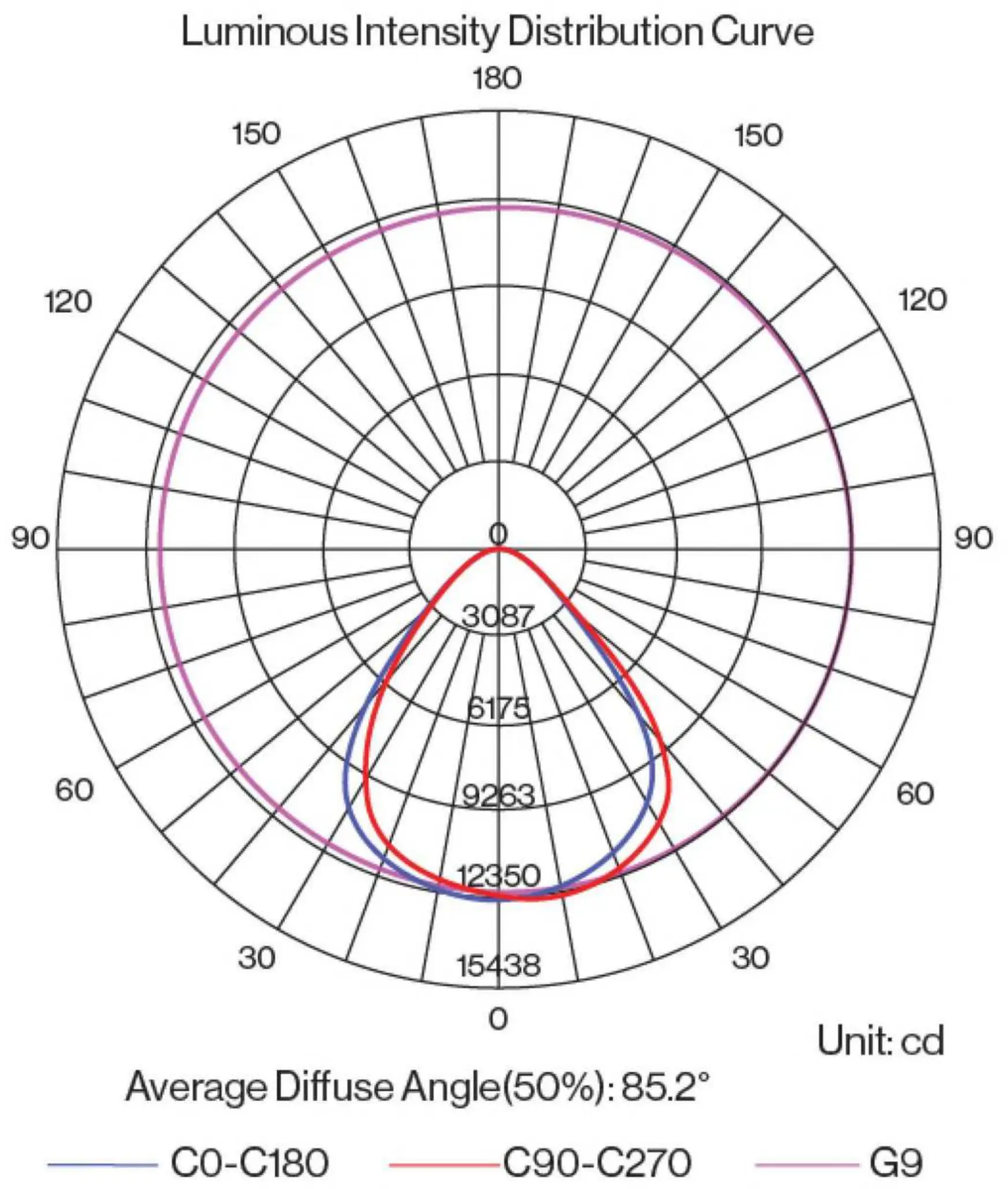

- Beam Angle: 90 degrees
- Dimmable: 0-10V
Environmental and Construction
Built to withstand demanding environments, the fixture is wet-rated, making it suitable for both indoor and outdoor installations. It operates reliably in temperatures ranging from -13°F to 122°F. The housing is constructed from high-quality aluminum alloy, ensuring effective heat dissipation and a lightweight design of approximately 3.74 lbs.
Installation and Performance
The fixture supports multiple mounting options, including hooks, ceiling mounts, and 1/2 inch NPT pole mounts, allowing for flexible installation in various architectural settings. With an average lifetime of 50,000 hours, this LED fixture offers long-term reliability and reduced maintenance needs. It is backed by a 7-year warranty, reflecting its robust build quality and performance standards.
Safety and Compliance
The Sunco UFO High Bay LED is fully certified to meet safety and environmental standards, including UL certification and RoHS compliance. It is also DLC listed, ensuring it meets high-performance criteria for energy efficiency and light quality.
