Sunco Lighting UFO High Bay LED Fixture User Manual
Quick guide for the Sunco Lighting UFO High Bay LED Fixture. Includes technical specifications, operating environment, and performance data for models HB_UFO-150W-4K-#PK, 5K, and 6K.
Table of contents
Quick guide from the manual
This document provides technical specifications and operational data for the Sunco Lighting UFO High Bay LED Fixture. It is designed for both indoor and outdoor use, including warehouses, gymnasiums, retail spaces, gas stations, and highway toll stations.
Product Overview

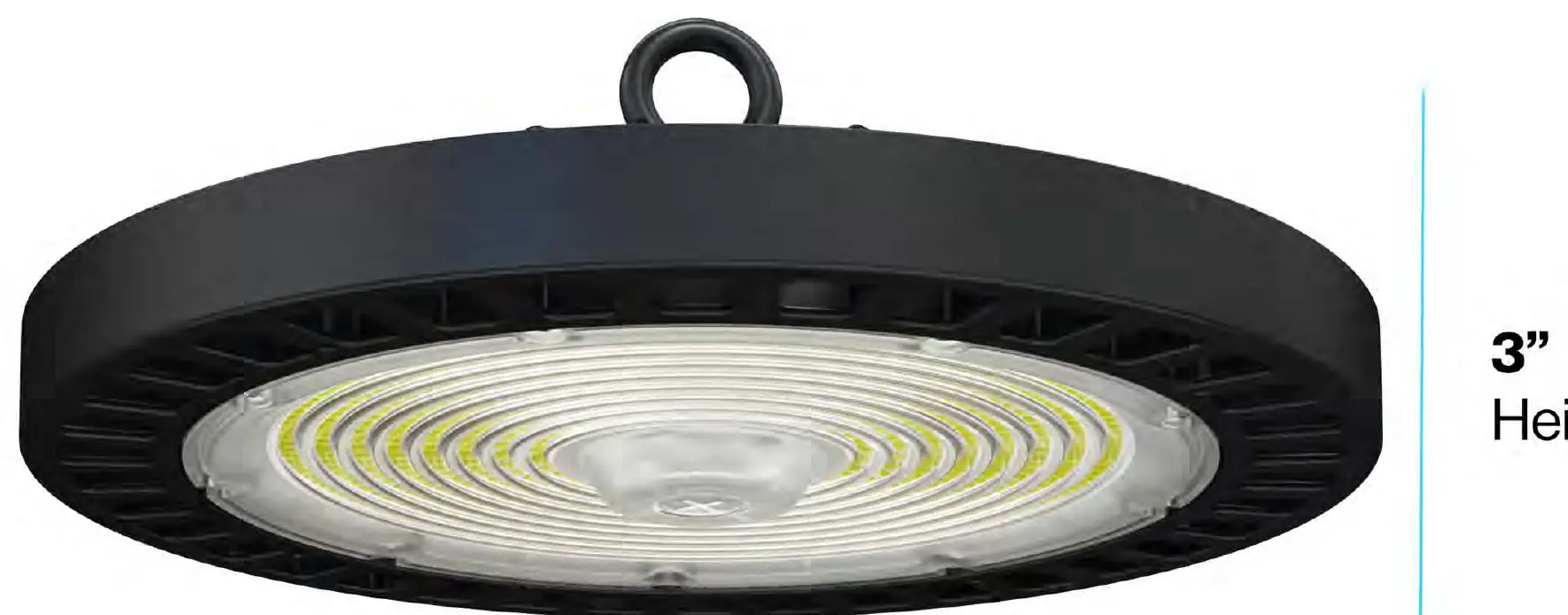

The fixture is a low-profile, dimmable LED light. It features a 90-degree beam spread and supports multiple mounting options, including hooks, ceiling mounts, and 1/2 inch NPT Pole Mounts.
Specifications
- Voltage: 100-277VAC
- Wattage: 150W
- Power Factor: >90
- Weight: 3.7 lbs
- Housing Material: Aluminum Alloy
- Warranty: 7 Years
Lighting Performance
- Lumens: 21000lm
- Beam Angle: 90°
- Dimmable: 0-10V
- Color Temperature: 4000K/5000K/6000K
- Average Lifetime: 50,000 Hours
Operating Environment
The fixture is rated for temperatures between -13°F and 122°F. It holds an IP65 moisture rating, indicating it is protected against dust and water jets, making it suitable for wet locations.
Practical help
Common problems
Ensure the fixture is connected to a compatible 0-10V dimmer switch.
Ensure the installation area is within the operating temperature range of -13°F to 122°F.
Before use
- Verify the supply voltage is between 100-277VAC.
- Confirm the mounting location is suitable for the fixture's weight (3.7 lbs).
- Ensure the environment is within the rated temperature range (-13°F to 122°F).
- Check that the installation surface can support the fixture.
