Sunco A19_AHF-2200K LED Spiral Filament Light Bulb
Technical specifications and product details for the Sunco A19_AHF-2200K LED Spiral Filament Light Bulb. Includes performance data, environmental ratings, and photometric information.
Quick answers from the manual
Quick answer
- The Sunco A19_AHF-2200K is a 5.5W LED spiral filament bulb operating at 120V, providing 450 lumens of light. It is wet-rated and non-dimmable. p. 1
Problems and fixes
This bulb is not dimmable.
p. 1Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 120V | Operating voltage | p. 1 |
| Wattage | 5.5W | Power consumption | p. 1 |
| Lumens | 450LM | Brightness | p. 1 |
| Dimmable | No | Compatibility with dimmer switches | p. 1 |
Show 1 more answers Show less
Where to find it in the PDF
- Specification Sheet p. 1
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document serves as a technical specification sheet for the Sunco A19_AHF-2200K LED Spiral Filament Light Bulb. It provides essential performance metrics, environmental ratings, and physical characteristics to assist with installation and compatibility planning. Note that this specific model is not dimmable.
Product Overview
The Sunco A19_AHF-2200K is an LED bulb designed for instant start-up without warm-up time. It is safe for use in various environments, including bedrooms, kitchens, living areas, offices, and bathrooms. It emits no UV radiation, making it suitable for home or museum artwork.
Technical Specifications
- Voltage: 120V
- Wattage: 5.5W
- Lumens: 450LM
- Color Temperature (CCT): 2200K
- CRI: 80+
- Beam Angle: 320 degrees
- Dimmable: No
- Efficacy: 81lm/w
- Frequency: 60Hz
- Power Factor: 0.7
Environmental and Lifetime
- Operating Temperature: -4°F to 104°F
- Moisture Rating: Wet Rated
- Average Lifetime: 25,000 hours
- Housing Material: Glass
- Weight: 0.07 lbs
- Warranty: 5 Years
Photometric Data

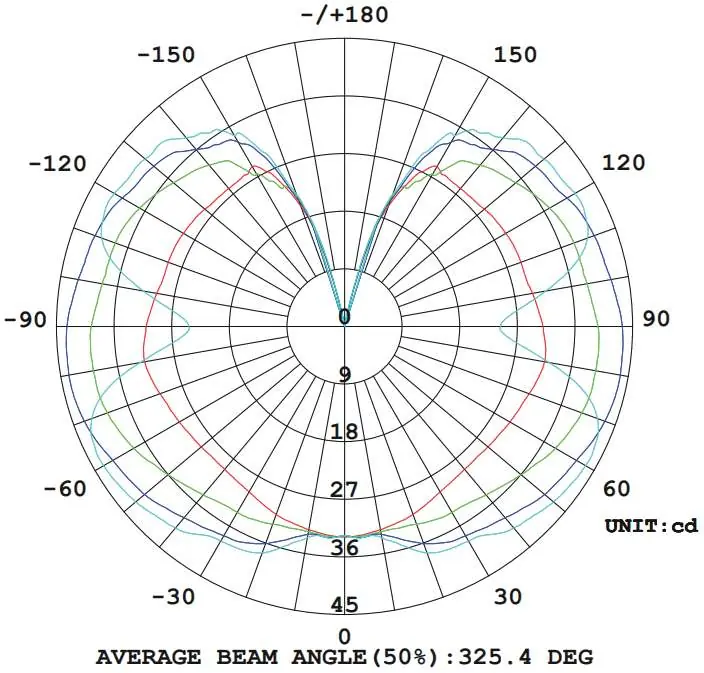

The photometric diagram illustrates the light distribution pattern of the bulb. The average beam angle is 325.4 degrees, providing wide-angle illumination suitable for general lighting applications.
Practical help
Common problems
This model is not compatible with dimmer switches. Ensure it is used in a non-dimmable fixture.
Before use
- Verify the fixture voltage is 120V.
- Confirm the bulb is not being used with a dimmer switch.
- Ensure the fixture is suitable for the bulb's physical dimensions and weight (0.07 lbs).
- Check that the operating environment is within the -4°F to 104°F range.
