Sunco T8 LED Clear Lens Tube Light Specification Sheet
Technical specifications and performance data for the Sunco T8 LED Clear Lens Tube Light (Type B). Includes electrical ratings, lighting performance, and environmental compatibility for model T8_BY_C2-10W-5000K.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document is a specification sheet for the Sunco T8 LED Clear Lens Tube Light (Type B). It provides essential electrical and lighting performance data. Please note that this is a Type B tube, which typically requires a ballast bypass installation, meaning the fixture must be wired directly to line voltage.
Product Overview
The Sunco T8 LED Clear Lens Tube Light is designed to replace traditional fluorescent tube lights, offering improved brightness for garages and workshops. It features a full glass construction with a clear lens.
Technical Specifications
- Voltage: 100-277V
- Wattage: 10W
- Power Factor: 0.9
Lighting Performance
- Lumens: 1200LM
- CCT: 5000K
- CRI: 80+

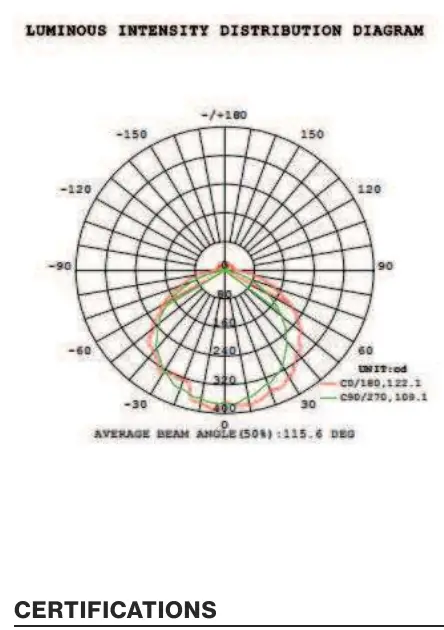

- Beam Angle: 120°
- Efficacy: 120lm/w
- Dimmable: No
Environment and Construction
- Operating Temperature: 4°F to 104°F
- Moisture Rating: Damp Rated
- Housing Material: Full glass, clear lens
Lifetime and Warranty
- Average Lifetime: 5000hrs
- Warranty: 5 Years
Practical help
Common problems
Ensure the fixture ballast has been bypassed. As a Type B tube, this product requires direct wiring to the line voltage.
This model is not dimmable. Do not use with dimmer switches as it may damage the lamp.
Before use
- Verify that your power supply is within the 100-277V range.
- Confirm the installation environment is within the 4°F to 104°F temperature range.
- Ensure the fixture is suitable for damp locations if installing in such an area.
- Check that the existing fixture ballast is bypassed (Type B requirement).
