Assembly Instructions for Tchibo 1.5-Row Wardrobe (Model 728 321)

Quick guide from the manual

This wardrobe requires assembly by two people. It is essential to fix the unit to a suitable wall to prevent tipping. Always assemble on a soft, level surface to avoid damage to the product or your floor. Ensure you have checked the parts list before beginning.

Safety Warnings

• Tipping Hazard: The unit must be fixed to a wall. Do not allow the product to stand freely.
• Assembly: Requires two people. Wear work gloves to avoid injury from sharp metal edges.

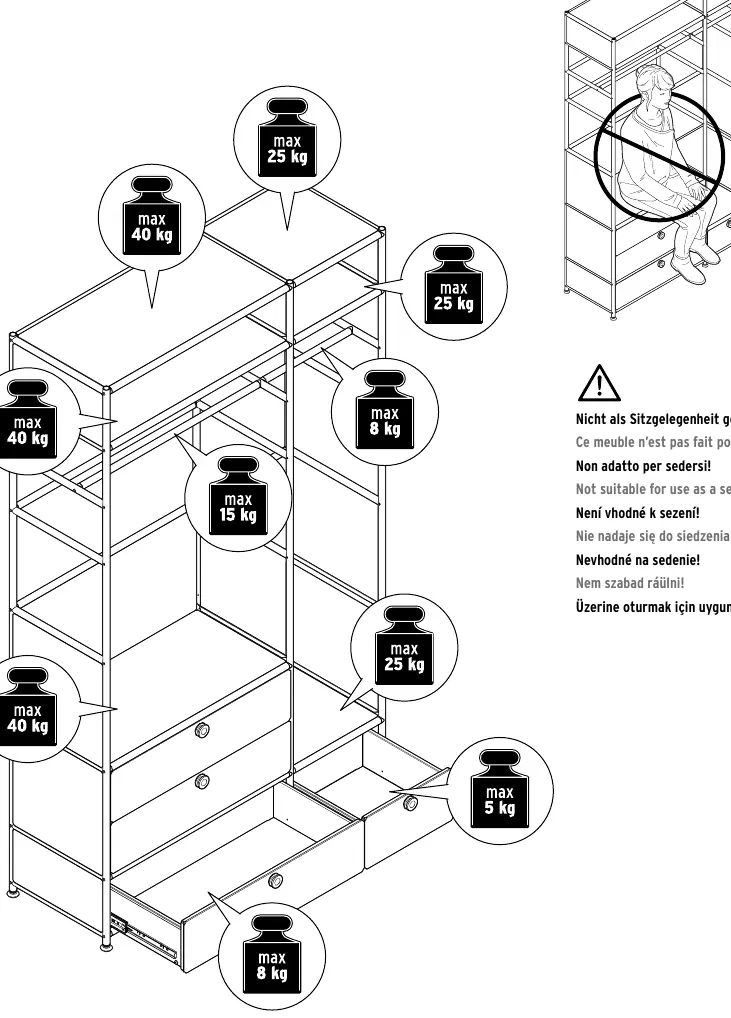

• Usage: Do not sit or stand on the product. Do not open all drawers simultaneously.
• Children: Keep packaging materials and small parts away from children to prevent suffocation or choking.

Assembly Instructions

The assembly process involves 42 steps. You must decide whether to fit the narrow part on the right-hand side (Option A) or the left-hand side (Option B) before starting steps 4-7. From step 8 onwards, the manual illustrates Option A.

Key Assembly Steps

• Preparation: Use the transport cardboard as a protective surface.

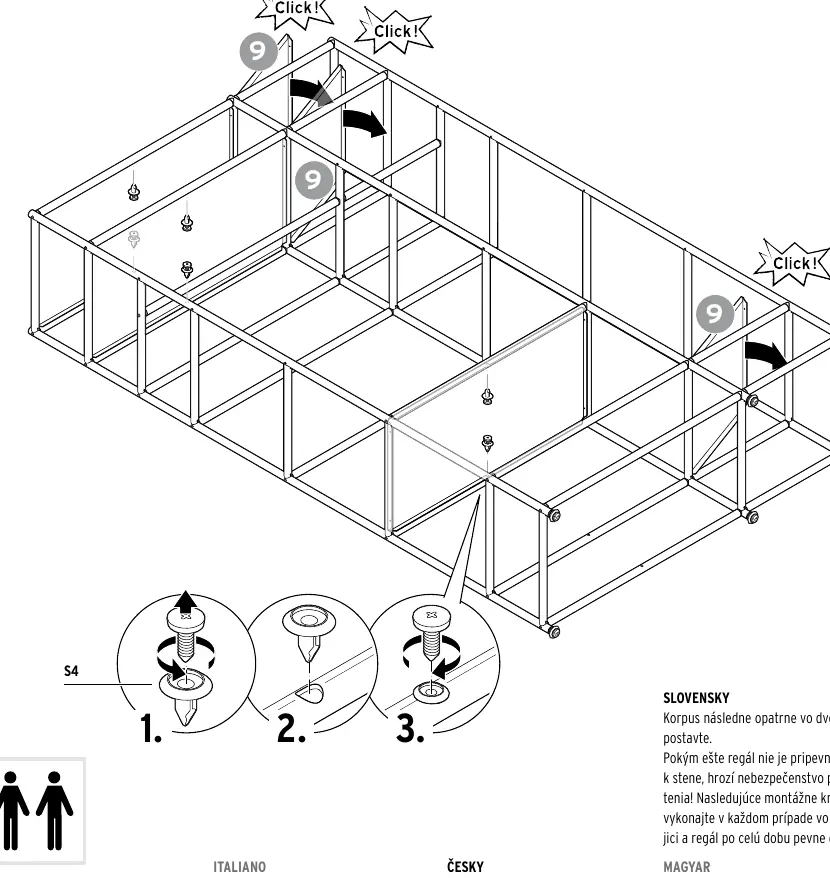

• Uprighting: Carefully stand the unit upright with the help of another person (Step 9).

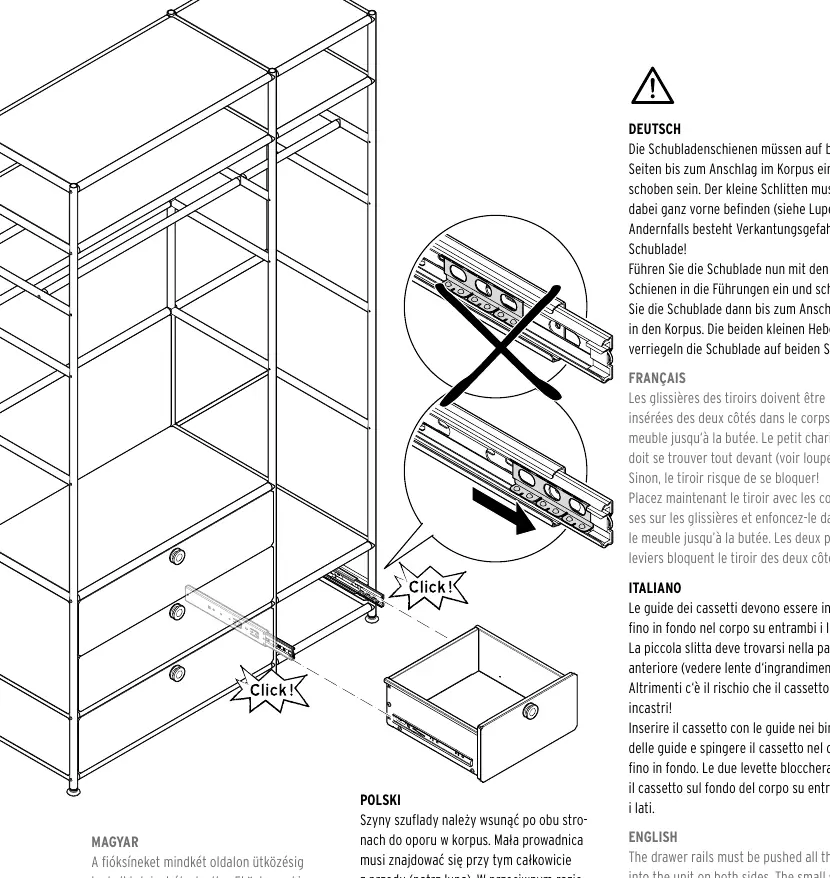

• Drawer Installation: Ensure the small slide on the drawer rail is at the very front before inserting the drawer into the unit (Step 38).
• Wall Mounting: Use the provided screws and wall plugs suitable for standard, solid walls. Verify there are no pipes or electrical wiring behind the drilling area.

Drawer Installation and Removal

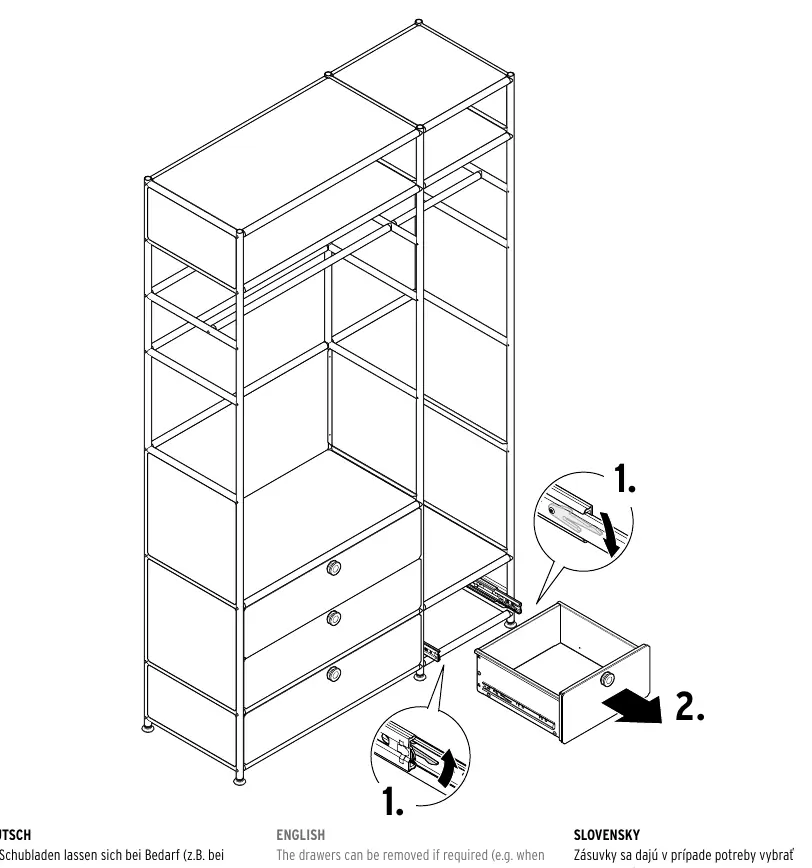

To install drawers, ensure the rails are pushed all the way into the unit. The small levers on the rails lock the drawer in place. To remove drawers (e.g., for cleaning or moving), press the small levers on the guide slots to release the drawer.

Care and Maintenance

Clean surfaces with a slightly damp cloth and wipe dry. Do not use abrasive or caustic cleaning agents, or hard brushes.

Service Information

If parts are missing or broken, refer to the service information on the last page of the manual. You will need the product number (728 321) and the specific part number from the parts list when contacting customer support.
