Indoor LED Light Fixture Tecnolite 13DYDLED020VCCTB

Quick guide for the Tecnolite 13DYDLED020VCCTB indoor LED light fixture. Includes installation steps, electrical wiring diagram, technical specifications, and safety precautions.

Table of contents

Quick Guide from the Manual

This document provides essential installation and safety instructions for the Tecnolite 13DYDLED020VCCTB indoor LED light fixture. Always disconnect the power source before performing any installation or maintenance work to ensure safety.

Technical Specifications

Power Supply: 127V ~ 60Hz, 13W, 0.1A
Lamp Type: LED 13W
Lamp Holder Base: LED

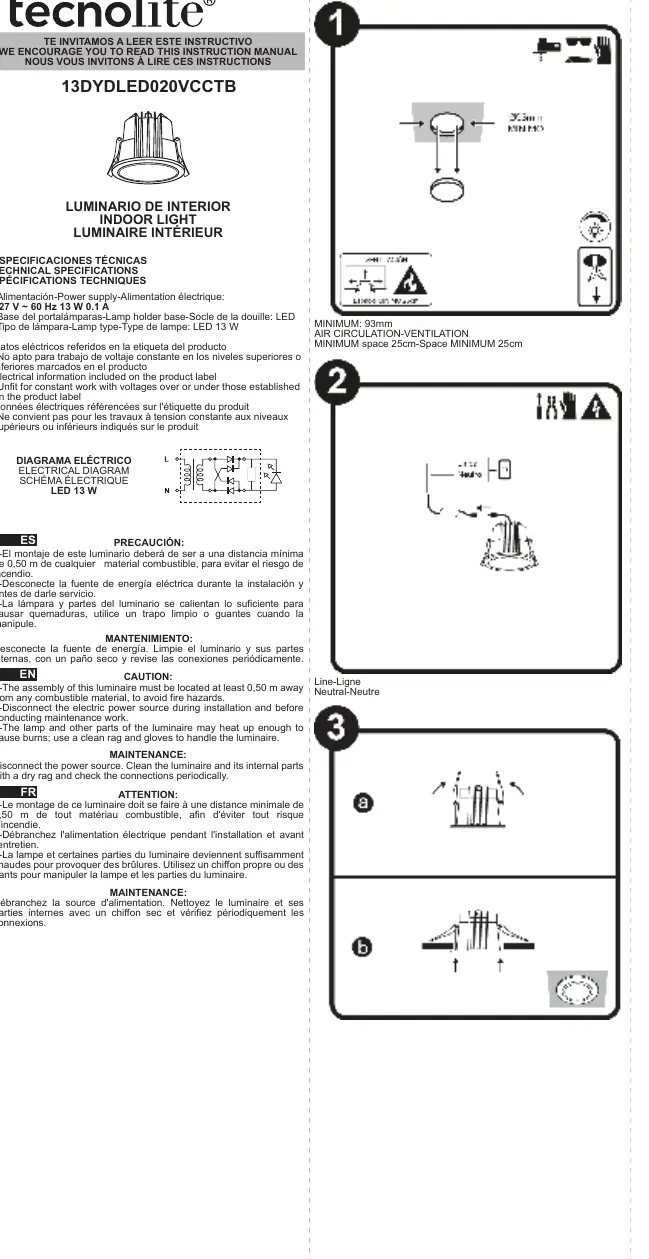

Installation

Follow these steps to install the luminaire:

Safety Clearance: Ensure the mounting location is at least 0.50m away from any combustible material to avoid fire hazards.
Space Requirements: Maintain a minimum of 93mm for the fixture installation and 25cm for air circulation.
Wiring: Connect the electrical wires according to the provided electrical diagram, ensuring proper connection of Line (L) and Neutral (N) wires.

Safety and Maintenance

Power Disconnection: Always disconnect the electric power source during installation and before conducting maintenance.
Handling: The lamp and parts of the luminaire may become hot during operation. Use a clean rag or gloves when handling the fixture to prevent burns.
Cleaning: Clean the luminaire and its internal parts with a dry rag.
Inspection: Periodically check all electrical connections to ensure they remain secure.

Manufacturer information

Tecnolite

Brand profile

Manufacturer website https://www.tecnolite.mx Support https://www.tecnolite.mx/contacto Manufacturer manuals https://www.tecnolite.mx/catalogos-y-folletos

Practical help

Common problems

Luminaire gets hot during operation

Use a clean rag or gloves when handling the fixture to avoid burns.

Fire hazard risk

Ensure the luminaire is installed at least 0.50m away from any combustible material.

Before use

Ensure the power source is disconnected before starting installation.
Verify the installation location allows for at least 25cm of air circulation space.
Check that the mounting surface is at least 0.50m away from combustible materials.
Confirm the electrical supply matches the 127V 60Hz specification.
Have a clean rag or gloves ready for handling the fixture.
