Installation Template for Terma Voltan 1kW Radiator
Official installation template and mounting guide for the Terma Voltan 1kW radiator. Includes drilling dimensions, wall plug specifications, and step-by-step mounting instructions.
Quick answers from the manual
Quick answer
- This document provides the installation template and mounting instructions for the Terma Voltan 1kW radiator. p. 1
Key actions
- Drill 4 holes using Ø10x60mm drill bits. p. 1
- Install mounting brackets using a PZ3 screwdriver. p. 1
Where to find it in the PDF
- Installation Template p. 1
Quick guide from the manual
This document serves as the official installation template for the Terma Voltan 1kW radiator. It provides the necessary drilling dimensions and mounting sequence to ensure correct installation on the wall.

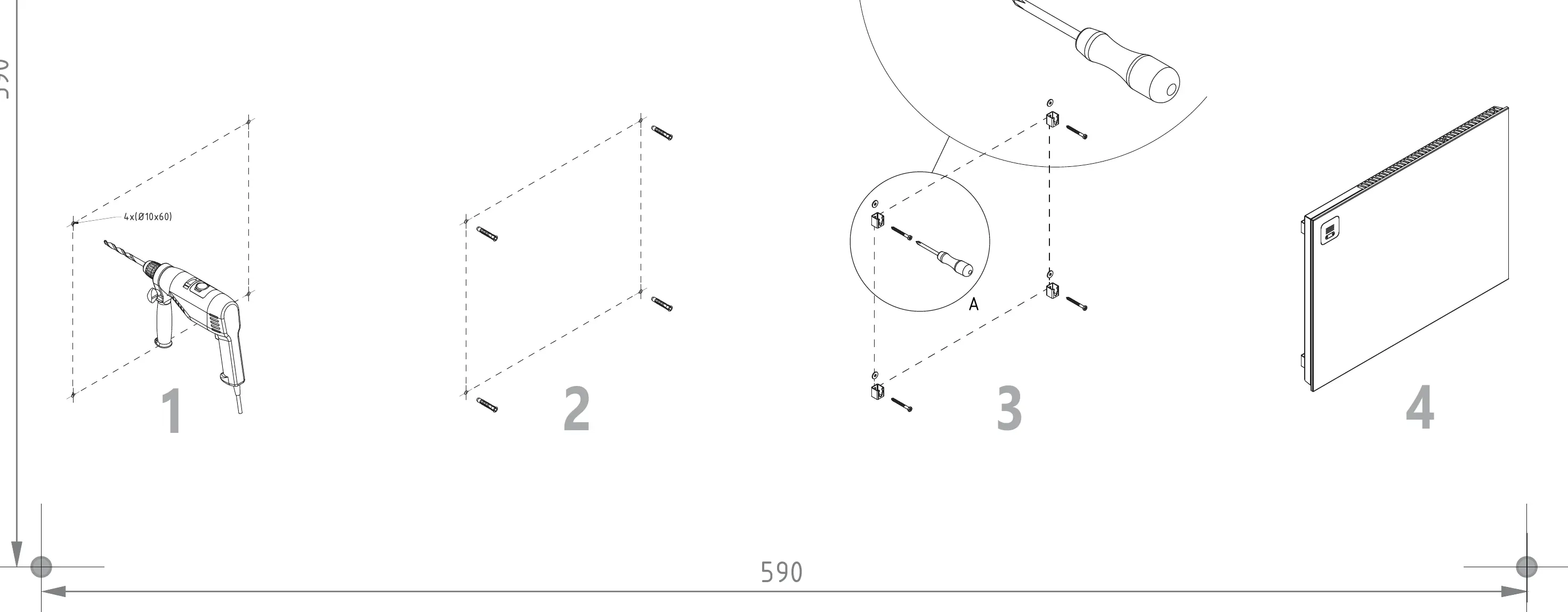

Installation steps
- Drilling: Drill 4 holes into the wall using a Ø10x60mm drill bit. The required spacing is 390mm vertically and 590mm horizontally.
- Wall Plugs: Insert the appropriate wall plugs into the drilled holes.
- Mounting Brackets: Secure the mounting brackets to the wall using a PZ3 screwdriver.
- Radiator Mounting: Attach the radiator to the installed brackets.
Practical help
Before use
- Ensure the wall surface is suitable for the provided Ø10x60mm plugs.
- Verify the drilling spacing: 390mm vertical by 590mm horizontal.
- Have a PZ3 screwdriver ready for bracket installation.
Specs in practice
- Mounting spacing
- 390mm vertical and 590mm horizontal distance between mounting points.
