Installation Guide for Terma MKP/MKS Mounting Bracket
Step-by-step installation guide for the Terma MKP/MKS mounting bracket. Includes drilling requirements, tool list, and assembly instructions for water and dual-fuel towel rails.
Table of contents
Manual images
Click an image to enlargeQuick installation guide
This document provides instructions for installing the Terma MKP/MKS mounting bracket. Ensure you have the correct tools and verify if your radiator is a water or dual-fuel version before beginning. Follow the drilling and assembly steps carefully to ensure a secure installation.
Tools required
- PZ3 screwdriver
- 14/22mm wrench
- 4mm hex key
- 10mm drill bit
Installation steps
Step 1: Drilling
Mark the mounting points on the wall according to the radiator dimensions (D, E). Use a 10mm drill bit to create holes for the wall anchors.
Step 2: Anchors
Insert the wall anchors into the drilled holes.
Step 3: Bracket mounting
Secure the mounting brackets to the wall using the provided screws and the PZ3 screwdriver.
Step 4-7: Radiator assembly

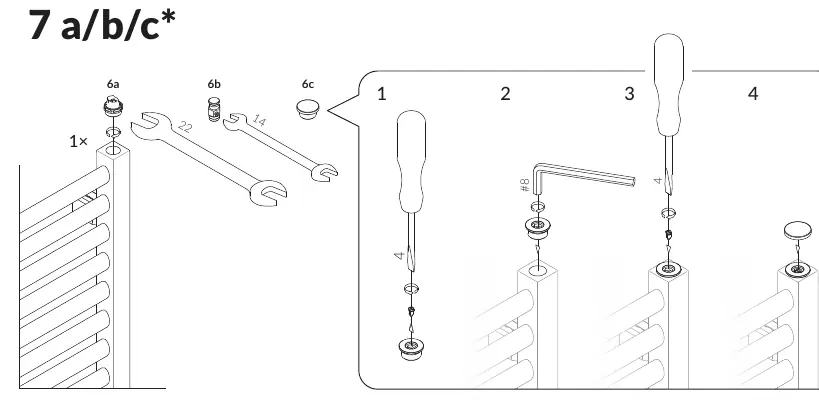

Assemble the bracket components as shown in the diagrams. Use the 4mm hex key to tighten the bracket connections. Ensure the bracket is properly aligned with the radiator profile.
Important notes
Some components marked with an asterisk (*) refer specifically to water and dual-fuel versions of the radiator. Ensure you are using the correct parts for your specific model.
Practical help
Common problems
Ensure you are using a 10mm drill bit for the wall anchors.
Verify if your radiator is a water or dual-fuel version, as some parts are specific to these types.
Before use
- Verify wall type for 10mm drill bit
- Gather tools: PZ3 screwdriver, 14/22mm wrench, 4mm hex key
- Identify if your radiator is water or dual-fuel version
- Measure mounting points D and E on the wall
