Installation Guide for The Home Depot QSJ Flat Mending Plate
Quick installation guide for The Home Depot QSJ flat mending plates. Includes dimensions, usage instructions, and mounting tips for furniture repair and reinforcement.
Quick answers from the manual
Quick answer
- The flat mending plates are used to reinforce wood furniture joints. Installation involves aligning the bracket with the joint and securing it with the provided screws. p. 1
Key actions
- Align bracket, secure with screws, and tighten. p. 1
Problems and fixes
Ensure screws are tightened firmly.
p. 1Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Dimensions | 60mm x 38mm | Physical size of the plate | p. 1 |
Where to find it in the PDF
- Installation Guide p. 1
Table of contents
Quick guide from the manual
This guide provides instructions for installing the flat mending plates to reinforce furniture or wood structures. The plates are designed for easy, sturdy, and reinforced holds on various wood items.
Installation instructions
To install the mending plates, follow these steps:
- Align: Position the bracket over the desired connection point on your furniture.
- Secure: Use the included screws to fasten the bracket to the wood.
- Tighten: Ensure all screws are tightened firmly for a sturdy and reinforced hold.
Product specifications

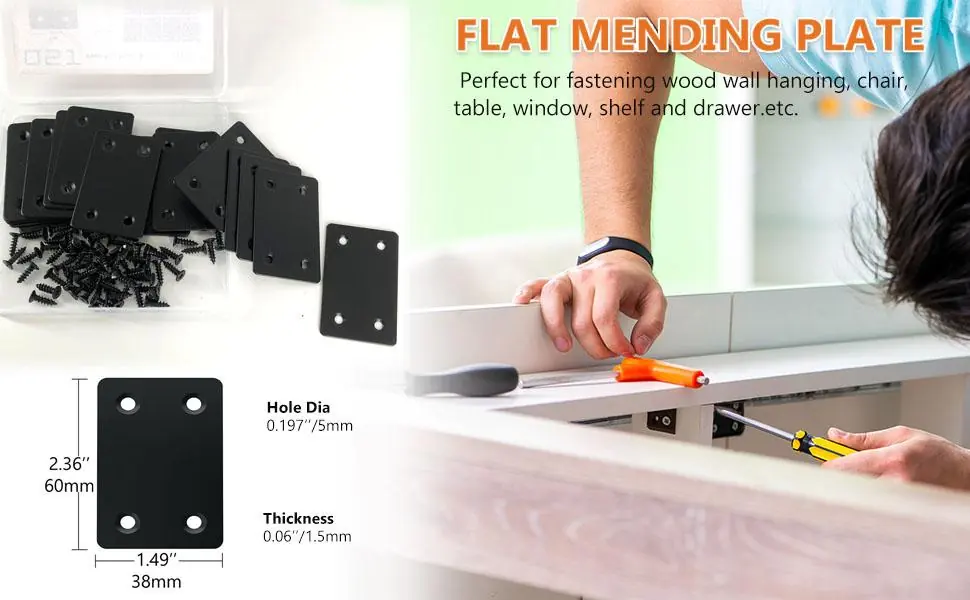

- Dimensions: 2.36 inches (60mm) x 1.49 inches (38mm)
- Hole Diameter: 0.197 inches (5mm)
- Thickness: 0.06 inches (1.5mm)
Intended use
These mending plates are designed for fastening and reinforcing various wood items, including:
- Chairs
- Tables
- Windows
- Shelves
- Drawers
- Wall hangings
Manufacturer information
The Home Depot
Practical help
Common problems
Ensure screws are tightened firmly and the bracket is properly aligned with the wood surface.
Before use
- Verify the wood surface is solid enough to hold screws.
- Ensure you have a screwdriver compatible with the included screws.
- Check that the bracket size (60mm x 38mm) fits your intended application.
