The Home Depot T3347BU Light Fixture Assembly Guide
Step-by-step assembly and wiring instructions for The Home Depot T3347BU light fixture. Includes a detailed wiring diagram and safety precautions.
Table of contents
Quick Guide
This document provides the necessary steps to assemble and install the T3347BU light fixture. It focuses on the mounting process and correct electrical wiring connections.
Assembly Instructions

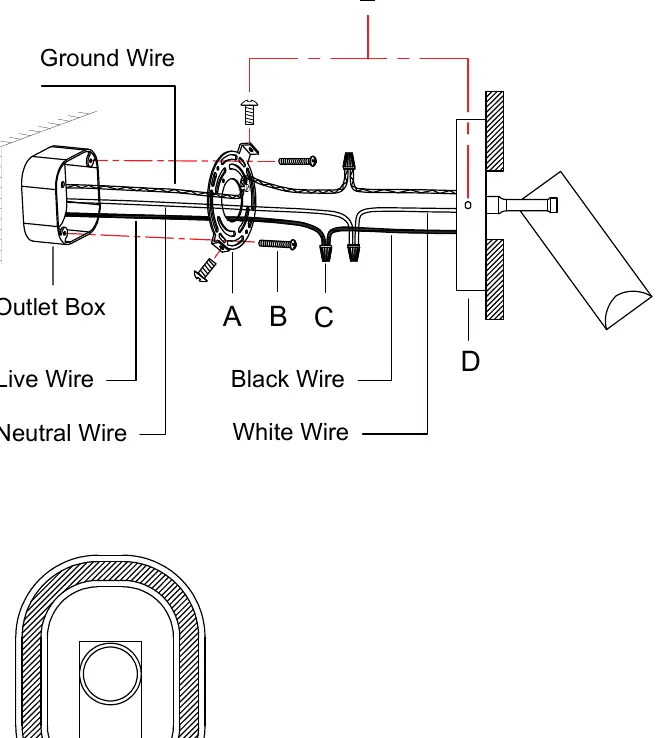

- Install the mounting plate: Attach the mounting plate (A) to the outlet box using the provided screws (B).
- Connect the wires: Connect the fixture wires to the circuit wires using the wire nuts (C). Ensure the black wire is connected to the live wire, the white wire to the neutral wire, and the ground wire to the ground wire. Twist the wire nuts to secure the wires together and wrap the connections with insulated rubber tape.
- Attach the canopy: Fix the canopy (D) to the mounting plate (A) using the screws (E).
Safety Information
If you are not familiar with electrical wiring, please consult a qualified electrician before attempting installation.
Manufacturer information
The Home Depot
Practical help
Common problems
Unfamiliar with electrical wiring
Consult a qualified electrician before proceeding with the installation.
Before use
- Ensure the power is turned off at the circuit breaker before starting.
- Verify that the outlet box is properly installed and ready for the fixture.
- Identify all components: mounting plate (A), screws (B), wire nuts (C), canopy (D), and screws (E).
