Installation Manual for 30-inch Mulch Kit 19A30013
A complete installation guide for the 30-inch Mulch Kit 19A30013. Learn how to remove the discharge chute and install the mulch plug correctly to ensure your mower starts properly.
Quick answers from the manual
Quick answer
- The 19A30013 mulch kit is installed by removing the existing discharge chute and securing the mulch plug into the deck discharge opening. The plug must depress the deck's safety switch for the engine to start. p. 1
Key actions
- Remove discharge chute p. 1
- Install mulch plug p. 1
Problems and fixes
Ensure the mulch plug is properly installed and depressing the safety switch on the deck surface.
p. 1Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Mulch Plug Part Number | 731-09312 | Replacement part number for the 30-inch deck mulch plug. | p. 1 |
Where to find it in the PDF
- Installation Instructions p. 1
Table of contents
Manual images
Click an image to enlargeImportant Information
The 19A30013 mulch kit is designed for use with select 30-inch single-blade cutting decks. Before installation, verify compatibility with your riding mower's Operator's Manual. Crucial: The engine will not start unless the mulch plug is properly installed and depressing the safety switch located on the deck surface.
Carton Contents
- One 30-inch Deck Mulch Plug (Part No. 731-09312)

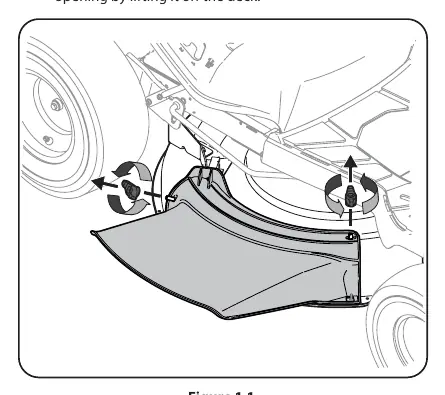

Removing the Discharge Chute
- Locate the wing knobs securing the discharge chute to the deck.
- Unscrew and remove the wing knobs.
- Lift the discharge chute off the deck discharge opening.

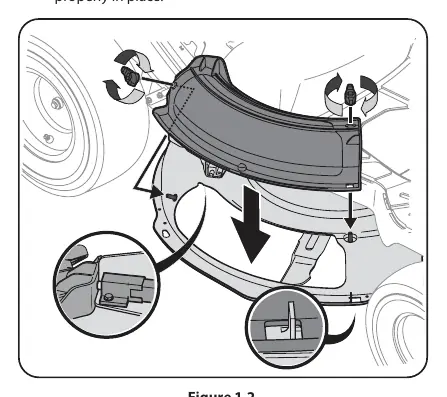

Installing the Mulch Plug
- Insert the mulch plug into the deck discharge opening.
- Ensure the studs on the deck surface fit through the holes on the upper portion of the mulch plug.
- Ensure the small tab on the deck lip fits through the square cutout on the lower portion of the mulch plug.
- Verify that the upper-rear portion of the mulch plug is depressing the safety switch on the deck.
- Secure the mulch plug by tightening the wing knobs removed earlier.
Manufacturer information
The Home Depot
Practical help
Common problems
Ensure the mulch plug is properly seated and the upper-rear portion is actively depressing the safety switch on the deck surface.
Before use
- Verify you have the 30-inch Deck Mulch Plug (731-09312).
- Check compatibility with your specific riding mower model using the mower's Operator's Manual.
- Ensure the engine is turned off and the mower is on a flat surface before starting installation.
