Installation Instructions for Thorn Candle Luminaire
Quick guide for installing and maintaining the Thorn Candle luminaire. Includes mounting steps, wiring requirements, safety warnings, and maintenance intervals.
Quick answers from the manual
Quick answer
- The Thorn Candle is an outdoor luminaire. Installation requires mounting on a pole, proper wiring based on Class I or II classification, and ensuring the power is off before maintenance. p. 1, 2
Key actions
- Mounting p. 2
First start
- Ensure power is off before installation. p. 2
Problems and fixes
Replace immediately.
p. 2Maintenance and reset
- Perform maintenance every 6 months. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Torque | 2.5 Nm | Tightening torque for screws | p. 2 |
Where to find it in the PDF
- Installation and Safety p. 1, 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation and maintenance instructions for the Thorn Candle luminaire. Key requirements include ensuring the power is switched off before any intervention, maintaining the luminaire every 6 months, and adhering to specific grounding requirements based on the luminaire class (Class I or Class II).
Installation

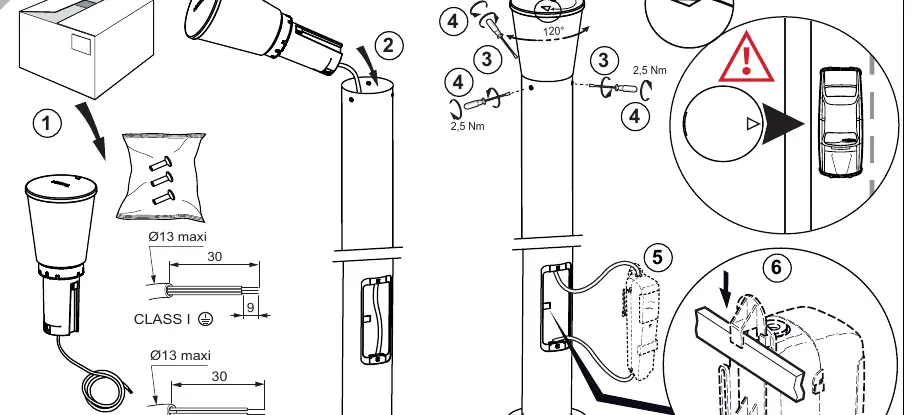

The luminaire is designed for pole mounting. Follow these steps:
- Ensure the power supply is disconnected before starting.
- Mount the luminaire onto the pole.
- Tighten all screws to a torque of 2.5 Nm.
- For Class I luminaires, ensure the device is properly earthed.
- For Class II luminaires, ensure exposed metal parts are not in contact with any grounded electrical installation.
Safety and Maintenance
- Maintenance: Inspect and perform maintenance every 6 months.
- Shields: Replace any cracked protective shield immediately.
- Safety: The luminaire operates at mains voltage. Always switch off the power before performing any maintenance or installation work.
- Positioning: Position the luminaire so that prolonged staring into it at a distance of less than 2 meters is not expected.
Practical help
Common problems
Replace immediately with a new one.
Ensure power is switched off before any intervention.
Before use
- Verify power is switched off
- Ensure proper grounding for Class I luminaires
- Check for cracked shields
- Confirm installation environment (IP66/IK10)
