Thule Kit 186223 Installation Guide
Installation guide for Thule Kit 186223, designed for MG QS 5-door SUVs with flush railings. Includes assembly steps, load limits, and safety instructions.
Table of contents
Manual images
Click an image to enlargeQuick Guide for Thule Kit 186223
This installation guide provides instructions for assembling and mounting the Thule Kit 186223, which is specifically designed for MG QS 5-door SUVs equipped with flush railings.
Safety and Load Limits
- Maximum load capacity: 75 kg (165 lbs).
- Maximum driving speed: 130 km/h (80 mph).
- Recommended speed with load: 80 km/h (50 mph).
- Tightening torque: 4 Nm.
Installation Steps
- Identify components: Ensure you have all parts included in the kit: 090 (x4), 178 (x4), and 022 (x4).

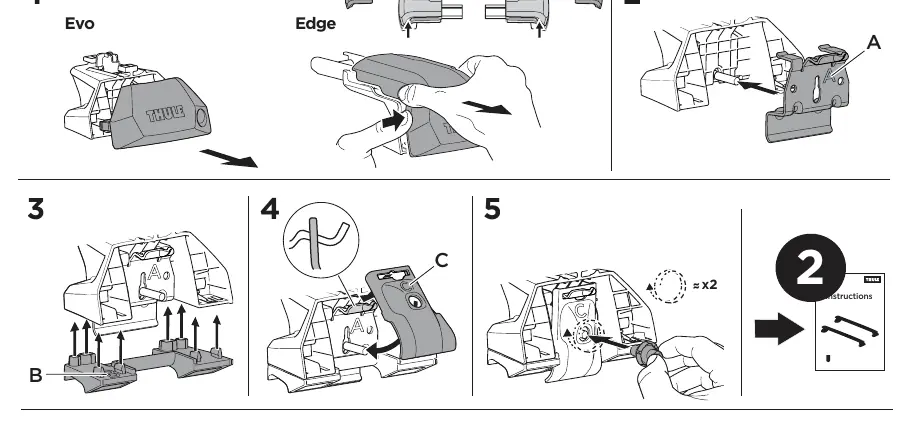

- Assemble the foot pack: Attach the kit components to the foot pack as illustrated in the assembly diagram.
- Mounting: Secure the assembled foot pack to the vehicle's flush railing.
- Tightening: Use the torque tool to tighten the assembly to 4 Nm.
Maintenance and Support
Thule Sweden AB, Borggatan 5, 335 73 Hillerstorp, SWEDEN. For further assistance, visit www.thule.com or contact [email protected].
Official resources from the manual
Manufacturer information
Thule
Practical help
Common problems
Do not exceed the maximum load capacity of 75 kg (165 lbs).
Limit speed to 80 km/h (50 mph) when carrying a load to ensure safety.
Before use
- Verify vehicle compatibility (MG QS, 5-dr SUV, 25-)
- Ensure vehicle has flush railings
- Check all parts (090, 178, 022) are present
- Have a torque tool ready for 4 Nm tightening
