Installation Instructions for Thule Tension Rafter G2 2.00-2.50m
Official installation and usage guide for the Thule Tension Rafter G2 (2.00-2.50m roof). Includes mounting steps, safety precautions, and maintenance guidelines.
Quick answers from the manual
Quick answer
- The Thule Tension Rafter G2 is an accessory for awnings. Installation requires cleaning the surface, attaching positioning pieces, and waiting 72 hours before use. p. 2
Key actions
- Attach positioning pieces p. 2
Problems and fixes
Water drainage
Lower one side of the awning.
p. 2Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Wind limit | 6 Bft | Close awning | p. 2 |
Where to find it in the PDF
- Title and Product Numbers p. 1

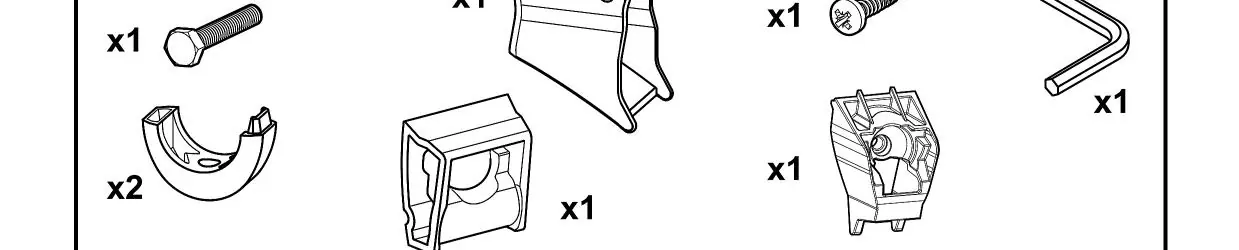

- Parts and General Remarks p. 2
- Installation Diagrams p. 3
- Usage Instructions p. 4
Table of contents
Manual images
Click an image to enlargeImportant information
This document provides installation and usage instructions for the Thule Tension Rafter G2 (2.00-2.50m roof). Before starting, verify that the product is compatible with your specific awning type, height, and projection.
General remarks
- Ensure the surface where positioning pieces are attached is dry, clean, and free of dust and grease.
- Press the positioning pieces firmly into the main housing of the awning.
- Important: Wait 72 hours after installation before using the rafter to ensure proper adhesion.
- Do not place heat sources near the roof.
Installation
The installation process varies depending on the awning model:

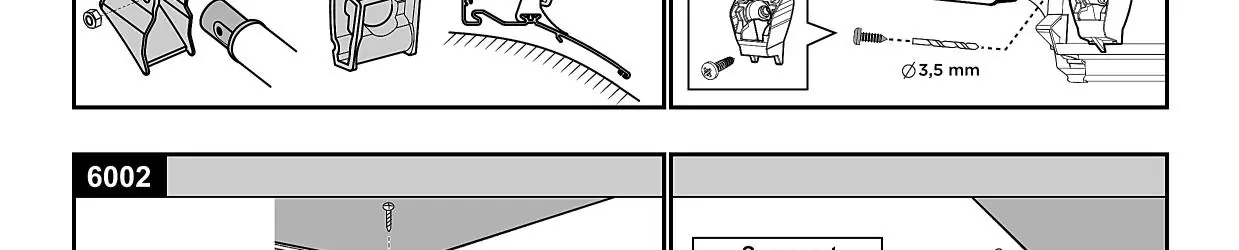

- Model 6200: Follow the specific mounting steps provided in the diagram, ensuring the positioning pieces are correctly aligned within the housing.
- Model 6002: Use the provided spare parts (1500601158) and follow the diagram for secure attachment.
Usage and safety

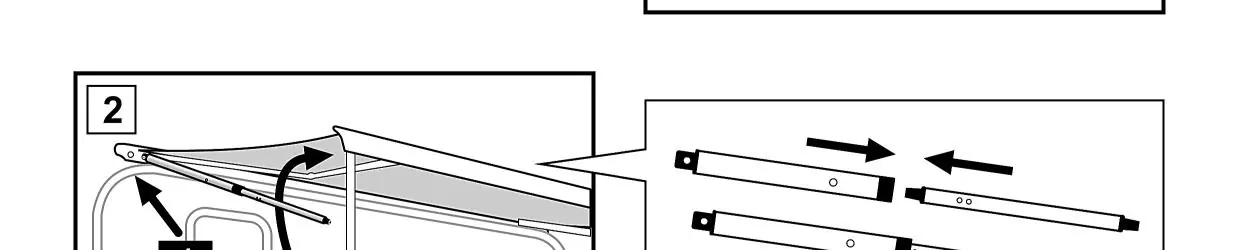

- Rain: If it rains, lower one side of the awning to allow water to drain effectively.
- Wind: Close the awning immediately if wind speeds reach 6 Bft.
- Compatibility: This product is not suitable for the 5003 3.00m model.
Manufacturer information
Thule
Practical help
Common problems
Water pooling on the awning
Lower one side of the awning to allow water to drain.
High wind conditions
Close the awning when wind reaches 6 Bft.
Before use
- Verify the product fits your awning type, height, and projection.
- Ensure the mounting surface is dry, clean, and free of grease.
- Press positioning pieces firmly into the housing.
- Wait 72 hours before using the rafter.
