TOLSEN 108PCS Rotary Tool Kit (Model 79757)

Product Overview

The Tolsen 108PCS Rotary Tool Kit (Model 79757) is a versatile power tool designed for precision tasks such as grinding, cutting, polishing, and drilling. With a power rating of 135W, this tool provides the necessary torque and speed control for a wide range of hobbyist and professional applications. The kit includes a comprehensive set of accessories to handle various materials effectively.

Understanding the Components

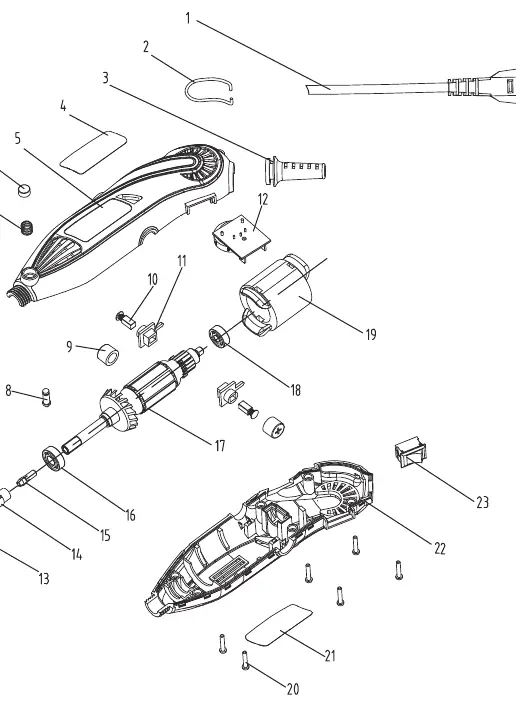

The rotary tool is engineered with high-quality internal components to ensure durability and consistent performance. Key internal parts include a robust motor rotor and stator, a speed-regulating circuit board for precise control, and high-grade bearings (698 and 606) that facilitate smooth rotation. The fuselage shell is designed for ergonomic handling, while the self-locking pin mechanism allows for quick and secure accessory changes.

Assembly and Maintenance

Proper maintenance is essential for the longevity of your rotary tool. The device features accessible carbon brushes (4.8x5.4x10mm) which should be inspected periodically for wear. If the tool experiences a loss of power or intermittent operation, the carbon brushes are often the first components to check. The assembly consists of a two-part fuselage shell held together by self-tapping screws. Users should ensure that the collet nut and collet chuck are securely tightened before operation to prevent accessory slippage. Always disconnect the power cord from the electrical outlet before performing any maintenance, cleaning, or accessory changes to ensure operator safety.

Safety and Usage Guidelines

When operating the rotary tool, always wear appropriate personal protective equipment, including safety glasses and a dust mask, especially when working with materials that generate debris. Ensure the tool is switched off before plugging it into a power source. The integrated speed-regulating circuit board allows the user to adjust the RPM to match the specific requirements of the task at hand. Avoid applying excessive pressure to the tool, as this can strain the motor and reduce the lifespan of the bearings. If the tool becomes excessively hot during operation, allow it to cool down before continuing. Keep the ventilation areas of the fuselage shell clear of dust and obstructions to maintain proper motor cooling.
