Toyota Tacoma Anti-Lock Brake System Fluid Leakage Inspection Guide
A concise technical guide for inspecting the Anti-Lock Brake System (ABS) for fluid leaks in the 2003 Toyota Tacoma, including identification of critical hydraulic lines and actuator inspection points.
Quick guide from the manual
This document provides the official procedure for inspecting the Anti-Lock Brake System (ABS) for potential fluid leaks in the 2003 Toyota Tacoma. The primary objective is to ensure the integrity of the hydraulic system by checking the actuator and all associated hydraulic lines for signs of leakage.
Inspection procedure

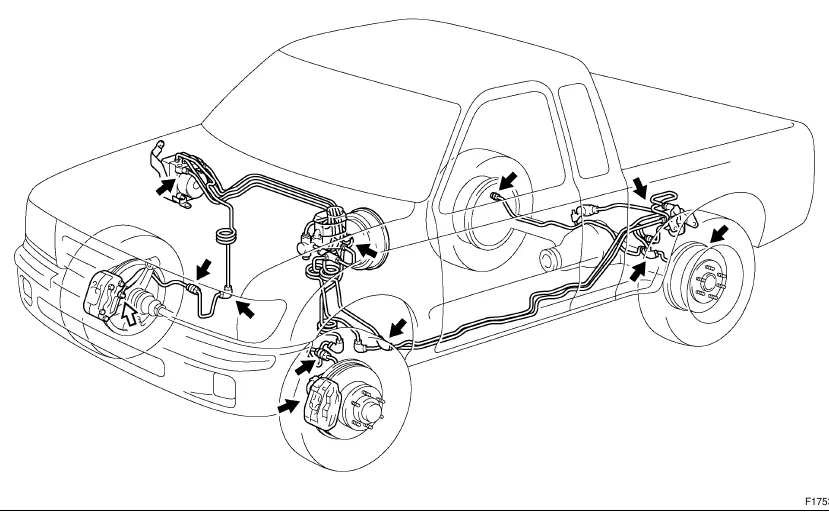

To perform the inspection, visually examine the entire hydraulic circuit for any signs of brake fluid seepage or wetness. Pay close attention to the following components:
- ABS Actuator: Inspect the main actuator unit for any external leaks.
- Hydraulic Lines: Trace all metal and flexible brake lines throughout the vehicle chassis.
- Connection Points: Check all fittings and junctions where lines connect to the actuator, master cylinder, and wheel brake assemblies.
If any fluid leakage is detected, the affected lines, fittings, or the actuator itself must be inspected further, repaired, or replaced according to standard automotive safety protocols.
Manufacturer information
Toyota Motor Corporation
Practical help
Common problems
Inspect the specific fitting or line section for corrosion, loose connections, or physical damage.
Verify if the leak is originating from the actuator housing or the connected hydraulic line fittings.
Before use
- Ensure the vehicle is parked on a level surface.
- Engage the parking brake.
- Use a bright flashlight to inspect dark areas under the chassis.
- Clean off any existing dirt or debris from lines to better identify fresh leaks.
