Toyota Tacoma Back-Up Light System Location Guide

Quick reference guide for the 2003 Toyota Tacoma back-up light system, detailing the location of switches, fuses, and components for both manual and automatic transmissions.

Table of contents

Quick guide from the manual

This document provides the physical location of components within the back-up light system for the 2003 Toyota Tacoma. It is intended to assist in troubleshooting and maintenance by identifying where the GAUGE fuse, ignition switch, and transmission-mounted switches are located.

System components location

The back-up light system components are distributed across the vehicle interior and the transmission assembly:

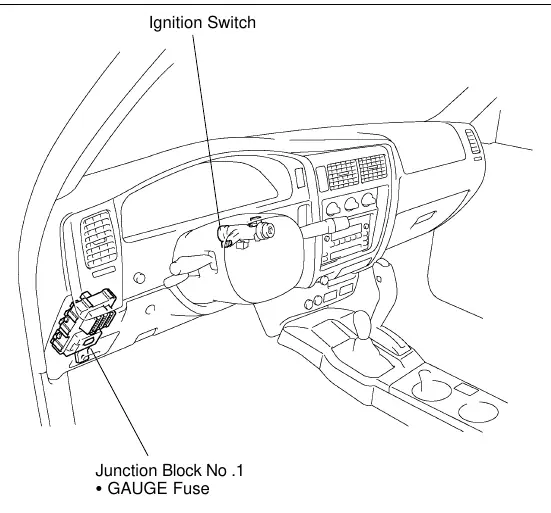

Interior location of the GAUGE fuse and ignition switch
Interior location of the GAUGE fuse and ignition switch
  • GAUGE Fuse: Located within Junction Block No. 1, situated inside the vehicle cabin near the driver's side dashboard area.
  • Ignition Switch: Located on the steering column assembly.
  • Back-up Light Switch (Manual Transmission): Mounted directly on the transmission housing. The specific location varies slightly between RZN series and VZN series engines.
  • PNP Switch (Automatic Transmission): Mounted on the transmission housing for A/T vehicles.

Component identification

The system relies on specific switches depending on the vehicle's transmission type:

  • M/T Vehicles: Utilize a Back-Up Light Switch screwed into the side of the transmission case.
  • A/T Vehicles: Utilize a Park/Neutral Position (PNP) switch located on the transmission to signal the back-up light circuit.

Practical help

Common problems

Back-up lights fail to illuminate

Check the GAUGE fuse located in Junction Block No. 1 and inspect the Back-Up Light Switch (M/T) or PNP Switch (A/T) on the transmission for proper connection.

Before use

  • Identify if the vehicle is equipped with a manual (M/T) or automatic (A/T) transmission.
  • Locate Junction Block No. 1 to verify the GAUGE fuse status.
  • Access the transmission housing area to inspect the light switch or PNP switch.
