Toyota Tacoma Headlight and Taillight System Components Guide
A technical guide to the headlight and taillight system components for the 2003 Toyota Tacoma, detailing the assembly of the steering column switch cluster.
Quick guide from the manual
This document provides an exploded view of the steering column electrical components for the 2003 Toyota Tacoma. It is intended for technicians or owners performing maintenance or repairs on the headlight, taillight, and wiper control systems.
Components
The headlight and taillight system control assembly consists of several integrated parts mounted to the steering column. The primary components identified in the system include:
- Light Control Switch: Manages headlight and taillight activation.
- Headlight Dimmer Turn Switch: Controls high/low beam selection and turn signals.
- Wiper Switch: Controls windshield wiper functions.
- Switch Body: The central housing unit for the control stalks.
- Spiral Cable: A critical component connecting the steering wheel electronics to the vehicle's electrical system.

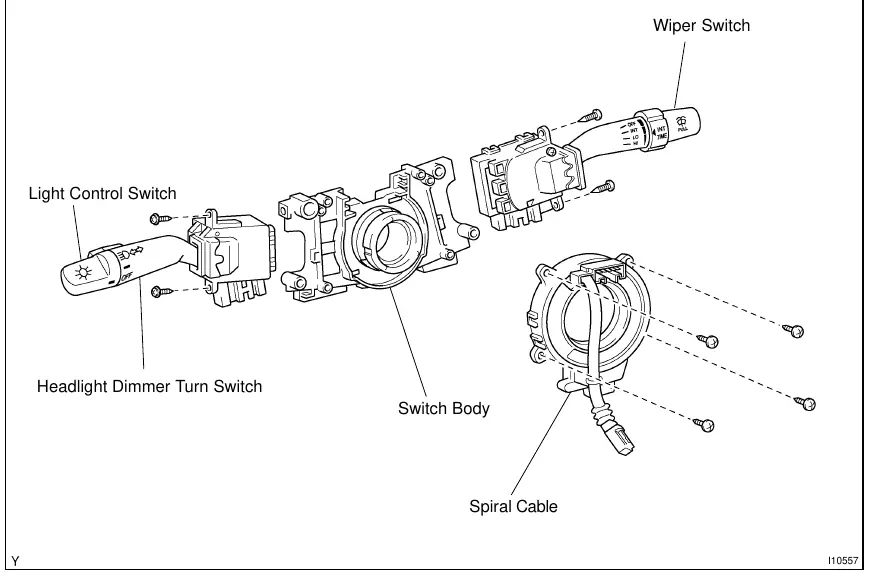

The assembly is secured using specific screws as shown in the component diagram. Ensure all electrical connectors are properly seated during reassembly to maintain system functionality.
Practical help
Common problems
Inspect the Light Control Switch and Headlight Dimmer Turn Switch for proper electrical connection and mechanical integrity.
Check the Spiral Cable for damage or improper installation, as it is a sensitive component for steering column electronics.
Before use
- Ensure the vehicle ignition is turned off before disconnecting any electrical switches.
- Verify that the steering wheel is in the center position before removing the spiral cable.
- Use appropriate screwdrivers to avoid stripping the mounting screws.
- Check that all wiring harnesses are free of corrosion.
