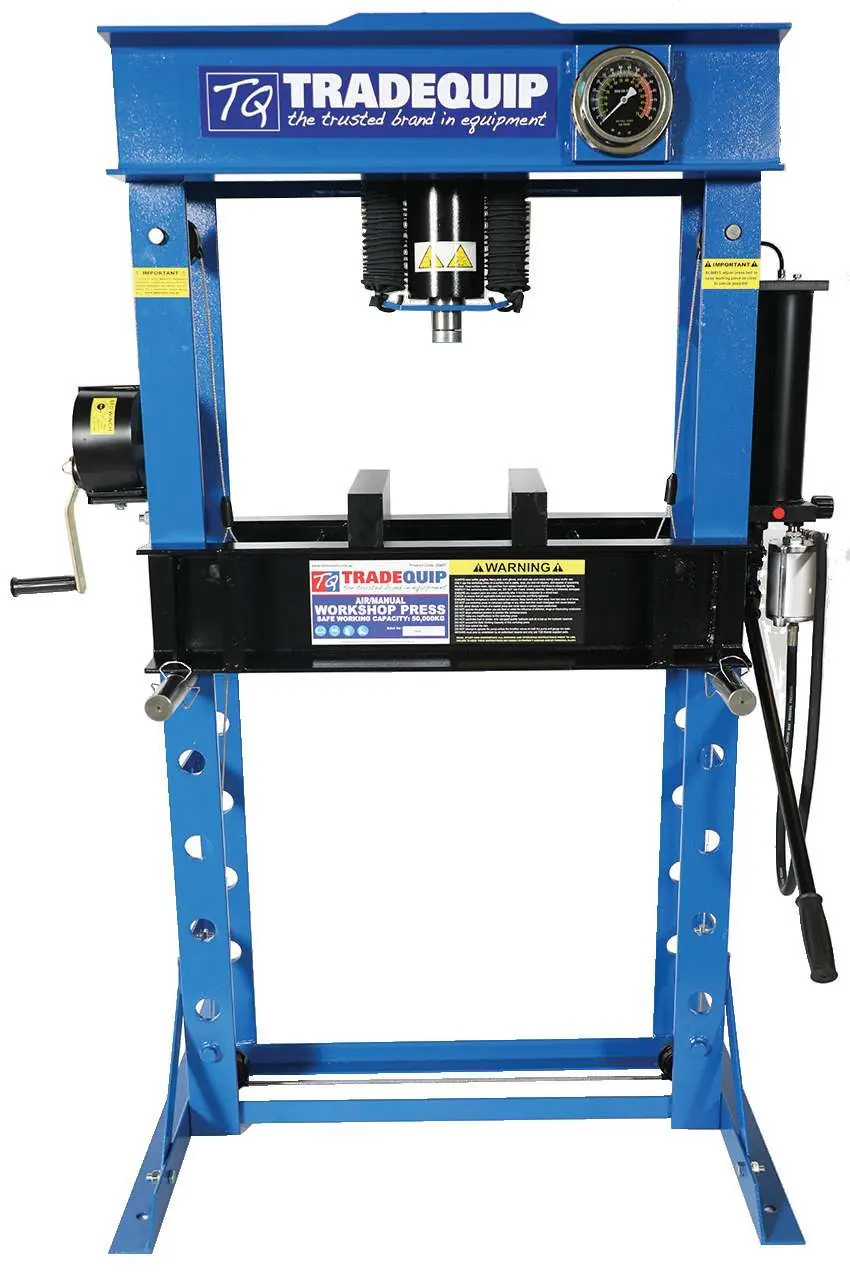

TradeQuip 2048T Air/Manual Workshop Press Product Information
Quick guide to the TradeQuip 2048T 50,000kg Air/Manual Workshop Press. Includes key features, technical specifications, and operating parameters.
Table of contents
Quick guide from the manual
This document provides an overview of the TradeQuip 2048T 50,000kg Air/Manual Workshop Press. It is designed for heavy-duty tasks such as straightening, stamping, bending, and pressing components that are difficult to handle.
Product Overview
The press features a heavy-duty steel frame and is powered by a manual two-speed pump. It includes a non-slip bed winch with a steel cable roller for easy height adjustments.
- Air Trigger: Hand-operated air trigger for ram travel control.
- Pressure Gauge: 100mm gauge for monitoring pressure.
- Bed Winch: Allows for fast height adjustments.
- Finish: Lead-free, oil, grease, and dirt-resistant paint.
Technical Specifications
- Safe Working Capacity: 50,000kg
- Operating Air Pressure: 110-125 psi
- Working Range: 137-837mm
- Bed Width: 710mm
- Piston Ram Stroke: 190mm
- Ram Diameter: 95mm
- Bed Height Settings: 6
- Nett Weight: 271kg
- Overall Dimensions: 1700H x 1290W x 745Dmm
Manufacturer information
TradeQuip
Practical help
Before use
- Ensure the air supply is set between 110-125 psi for pneumatic operation.
- Verify the workpiece fits within the 137-837mm working range.
- Check that the bed winch is secure and functioning correctly before adjusting the bed height.
- Confirm the press is on a stable surface capable of supporting the 271kg weight.
Specs in practice
- Safe Working Capacity
- The maximum load the press is rated to handle safely (50,000kg).
- Operating Air Pressure
- The required air pressure range for the pneumatic motor to function (110-125 psi).
- Working Range
- The vertical space available for pressing operations (137-837mm).
- Bed Height Settings
- The number of adjustable positions for the press bed (6 settings).
