Traxxas Nissan 240SX Body Assembly Guide
Assembly guide for the Traxxas Nissan 240SX body shell, detailing the installation of the spoiler, side mirrors, and bumper assemblies with required screw specifications.
Quick answers from the manual
Quick answer
- This guide illustrates the assembly of the Traxxas Nissan 240SX body, including the installation of the spoiler, mirrors, and bumpers using specific screw sizes. p. 1
Key actions
- Attach the spoiler using 3x8 BCS screws. p. 1
- Install front and rear bumpers using 3x10 BCS and 2.5x10 BCS screws. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Spoiler Screw | 3x8 BCS | Screw size for spoiler attachment | p. 1 |
| Bumper Screw | 3x10 BCS / 2.5x10 BCS | Screw sizes for bumper attachment | p. 1 |
Show 1 more answers Show less
Where to find it in the PDF
- Body Assembly Diagram p. 1
Table of contents
Assembly Guide
This document provides the assembly instructions for the Traxxas Nissan 240SX body shell. It illustrates the correct placement of external components such as the spoiler, side mirrors, and bumper assemblies onto the main body.
Body Components Installation
The assembly process involves attaching the following components to the main body shell using the specified hardware:
- Spoiler: Attached to the rear deck using 3x8 BCS screws.
- Side Mirrors: Attached to the side doors.
- Front and Rear Bumpers/Splitters: Attached to the lower front and rear sections of the body using 3x10 BCS and 2.5x10 BCS screws.
Hardware Specifications
Ensure you use the correct screw sizes as indicated in the diagram to avoid damaging the body shell:
- 3x8 BCS: Used for the spoiler.
- 3x10 BCS: Used for bumper assemblies.
- 2.5x10 BCS: Used for specific bumper mounting points.
Practical help
Before use
- Verify all parts are present (spoiler, mirrors, bumpers).
- Ensure you have the correct screw sizes (3x8, 2.5x10, 3x10 BCS).
- Use a compatible screwdriver to avoid stripping the plastic.
Images and diagrams

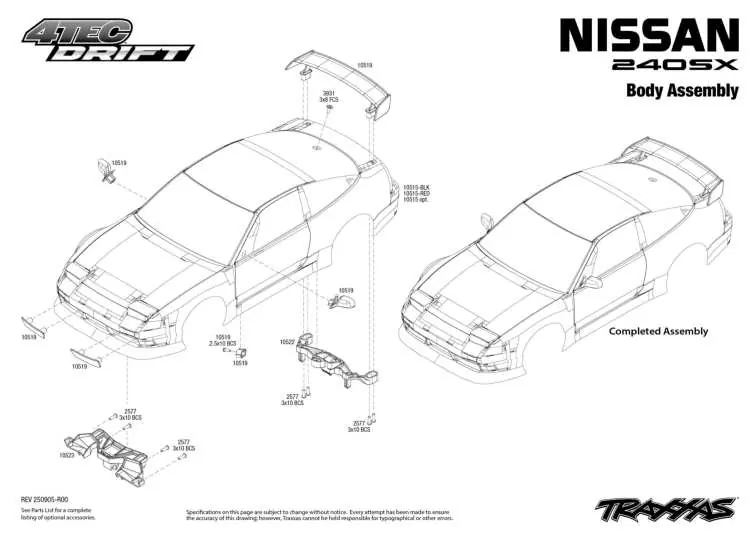

- The diagram shows an exploded view of the Nissan 240SX body shell.
- Dashed lines indicate the mounting points for the spoiler, mirrors, and bumpers.
- The right side of the diagram shows the completed assembly.
