Trevi XF 1750KB Power Portable Speaker with Trolley

Product Overview

The Trevi XF 1750KB is a high-power portable speaker equipped with a convenient trolley system for easy transport. It features integrated Bluetooth connectivity, a USB/SD card player, and disco light effects. The unit includes a wireless microphone, making it ideal for various audio applications.

Safety Information

• Do not expose the device to rain, humidity, or splashing water.
• Do not open the unit; there are no user-serviceable parts inside.
• Avoid placing the device near heat sources, in dusty environments, or areas subject to strong vibrations.
• Limit listening time at high volumes to prevent potential hearing damage.
• Ensure at least 5 cm of space around the unit for proper air circulation.

Getting Started

The speaker can be powered via the internal 12V 9Ah rechargeable lead-acid battery or by connecting to an AC power source (110-240V). Use the main power switch to select between DC (battery) or AC (mains) operation. The LED indicator shows charging status: red for charging and green when fully charged.

Operation

Bluetooth: Select the Bluetooth function using the MODE button. The display will show 'BLUE' and the symbol will flash while searching for devices. Pair with 'XF 1750KB' using password '0000' if prompted.

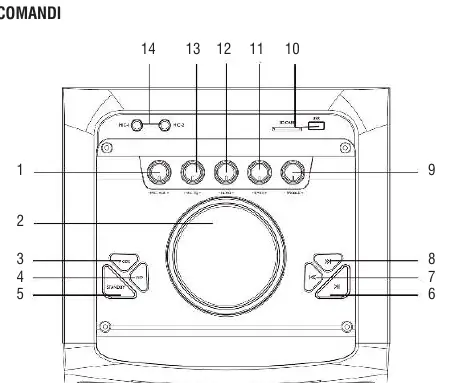

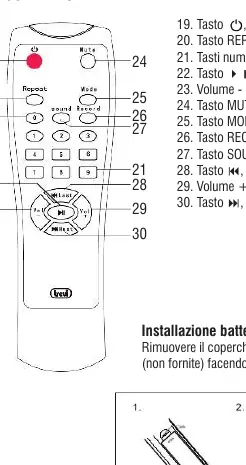

USB/SD Playback: Insert a USB drive or SD card into the respective slots. Playback starts automatically. Use the remote control or unit buttons to play, pause, skip tracks, or repeat songs.

Recording: The unit supports recording audio from the microphone or AUX input onto a USB/SD device. A 'RECORDM' folder is automatically created to store your recordings.

Maintenance and Disposal

Clean the unit with a soft, slightly damp cloth. Avoid solvents or abrasive substances. At the end of its life, the product must be disposed of separately from household waste according to local WEEE regulations. Battery removal should only be performed by qualified technical personnel.
