Installation Guide for Trio Lighting Wall Lamp 212700104
Quick installation guide for the Trio Lighting wall lamp. Includes wiring instructions, technical specifications, and safety warnings for model 212700104.
Quick answers from the manual
Quick answer
- This document provides installation instructions for the Trio Lighting wall lamp (model 212700104). It covers wiring, mounting, and technical specifications. p. 2
Key actions
- Connect the power supply wires to the terminal block (L, N, Ground). p. 2
- Install one E27 bulb with a maximum of 40W. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 230V ~ 50Hz | Mains power requirements | p. 2 |
| Bulb Type | 1 x E27 max. 40W | Compatible bulb socket and max wattage | p. 2 |
Where to find it in the PDF
- Safety Warnings p. 1

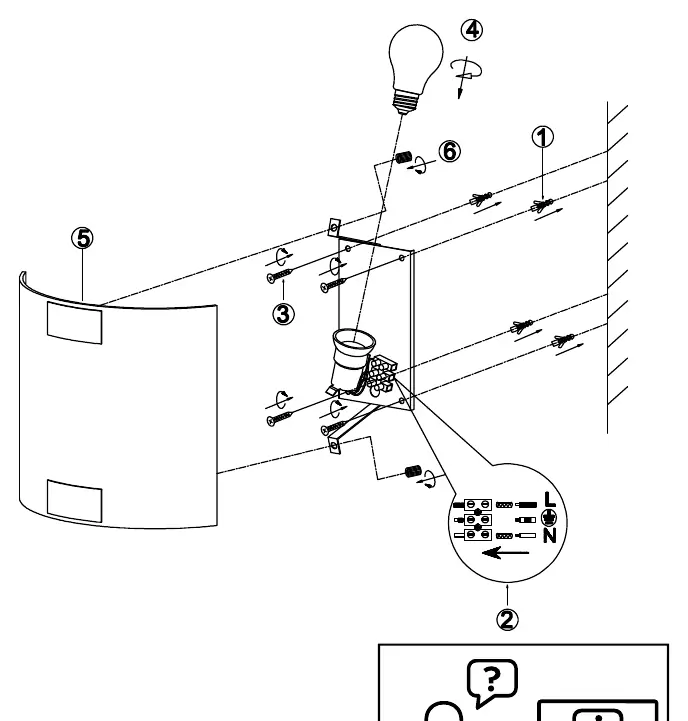

- Installation Diagram and Specs p. 2
Table of contents
Quick guide from the manual
This document provides essential safety warnings and installation instructions for the Trio Lighting wall lamp. Before beginning any assembly, ensure the power supply is disconnected. The product is designed for indoor use only and requires a specific distance from illuminated objects.
Installation
Follow these steps to install the wall lamp:
- Preparation: Ensure the power is turned off at the mains.
- Mounting: Drill holes in the wall according to the mounting bracket dimensions and insert wall plugs.
- Wiring: Connect the power supply wires to the terminal block, ensuring correct connection of Live (L), Neutral (N), and Ground (Earth) wires.
- Assembly: Secure the mounting bracket to the wall using the provided screws.
- Finalizing: Attach the lamp shade to the bracket and secure it with the side screws.
- Bulb: Install the light bulb into the socket.
Technical Specifications
The device operates under the following parameters:
- Voltage: 230V ~ 50Hz
- Bulb Socket: 1 x E27
- Maximum Wattage: 40W
- Protection Class: IP20
- Safety Distance: Minimum 0.4m from illuminated object
Practical help
Before use
- Ensure the power supply is switched off before starting installation
- Verify that the wall surface is suitable for mounting
- Check that the bulb wattage does not exceed 40W
- Confirm the installation location allows for a minimum 0.4m distance to illuminated objects
Specs in practice
- 1 x E27 max. 40W
- Requires one E27 base bulb with a maximum power consumption of 40 Watts
