TRIO Ardas Copper Lamp Installation Manual
Installation guide for the TRIO Ardas Copper Lamp. Includes step-by-step mounting instructions, wiring diagrams, and technical specifications for safe setup.
PDF source: Deutsch · summary: English
Quick answers from the manual
Quick answer
- This document provides installation instructions for the TRIO Ardas wall light, including wiring diagrams and safety precautions. p. 2
Key actions
- Turn off power p. 2
- Connect wiring p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 230V~50Hz | Standard mains voltage | p. 2 |
| Bulb Type | 2 x GU10 max. 10W | Maximum wattage per bulb | p. 2 |
Show 1 more answers Show less
Where to find it in the PDF
- Safety Warnings p. 1
- Installation Guide p. 2
Table of contents
Important Information
Before starting the installation, ensure the power supply is switched off at the main circuit breaker. This product is rated IP44, meaning it is protected against splashing water, making it suitable for outdoor or bathroom use. Maintain a minimum distance of 0.2m from illuminated objects.
Installation Steps

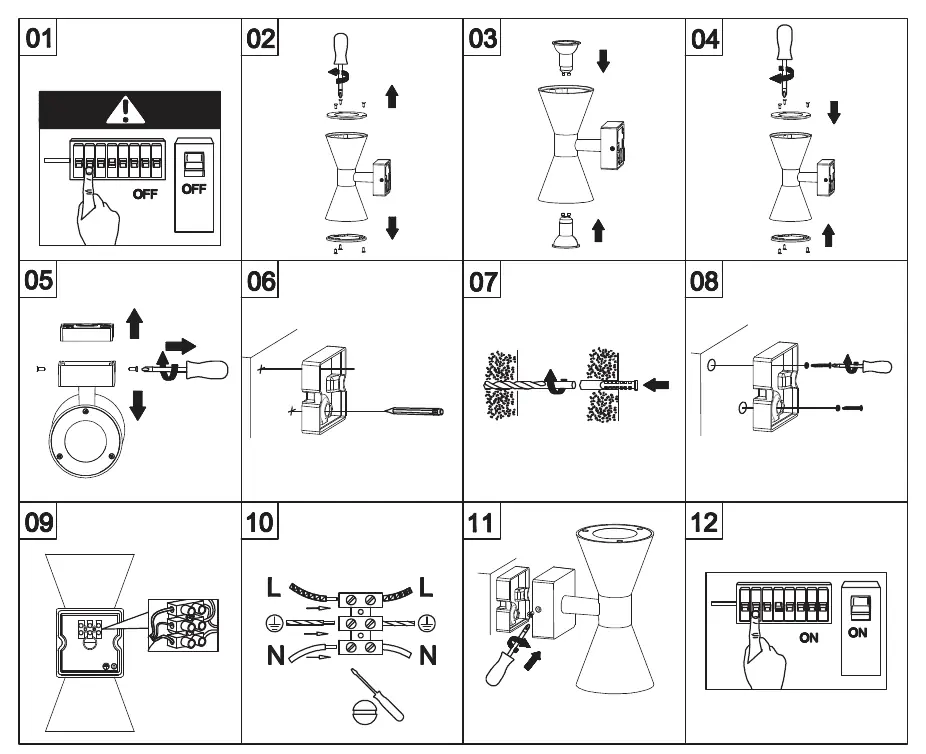

- Power Off: Switch off the electricity at the main fuse box.
- Disassembly: Remove the cover from the fixture.
- Bulb Installation: Insert the two GU10 bulbs into the sockets.
- Reassembly: Replace the cover.
- Marking: Use the base to mark the drilling holes on the wall.
- Drilling: Drill the holes and insert the wall plugs.
- Mounting: Secure the fixture to the wall using screws.
- Wiring: Connect the power cables to the terminal block (L to L, N to N, and Ground).
- Finalizing: Secure the fixture and switch the power back on at the circuit breaker.
Technical Specifications
- Voltage: 230V~50Hz
- Bulb Type: 2 x GU10 max. 10W
- Protection Class: IP44
Practical help
Common problems
Light does not turn on
Check if the power is on at the circuit breaker and ensure bulbs are correctly installed.
Water ingress
Ensure the housing is properly sealed and the IP44 rating requirements are met during installation.
Before use
- Ensure power is switched off at the main fuse box
- Verify the wall surface is suitable for mounting
- Check that the bulbs do not exceed 10W each
- Confirm all wiring connections are secure
