User Manual for TRIO Arino LED Wall Lamp
Quick guide for the TRIO Arino LED wall lamp. Includes installation steps, electrical specifications, and safety warnings for proper setup.
Table of contents
Quick guide from the manual
This document provides essential safety instructions and installation steps for the TRIO Arino LED wall lamp. Before beginning any assembly work, ensure the power supply is disconnected. Read all safety instructions carefully to prevent accidents.
Installation

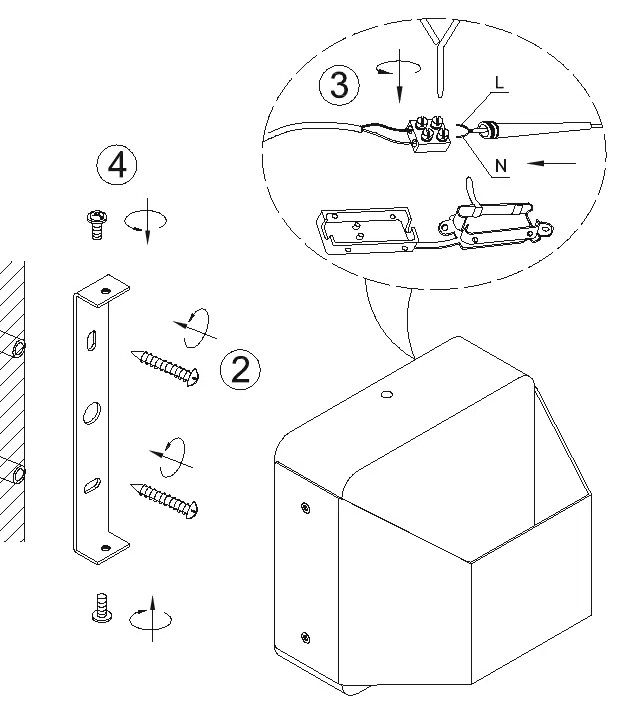

Follow these steps to install the wall lamp:
- Preparation: Drill the necessary holes in the wall and insert the wall anchors.
- Mounting: Attach the mounting bracket to the wall using the provided screws.
- Electrical Connection: Connect the power supply wires to the terminal block. Ensure the Live (L) and Neutral (N) wires are connected correctly to the corresponding terminals.
- Final Assembly: Secure the lamp housing onto the mounting bracket using the provided screws.
Technical specifications
- Voltage: 230V~50Hz
- Light Source: 1x LED 4.3W
- Protection Class: IP20 (Suitable for indoor use only)
Practical help
Common problems
Light does not turn on after installation
Verify that the electrical connections (L and N) are secure and correctly wired to the terminal block. Ensure the main power supply is switched on.
Before use
- Ensure the main power supply is turned off before starting installation.
- Verify that the wall surface is suitable for mounting the bracket.
- Check that the voltage of your power supply matches the 230V requirement.
- Ensure all necessary tools (drill, screwdriver) are available.
