Quick guide from the manual
Before beginning the installation of your TRIO 622910532 LED ceiling lamp, it is essential to read all safety instructions provided in the manual. Ensure the power supply is disconnected at the circuit breaker before starting any work to prevent electrical shock.
Installation

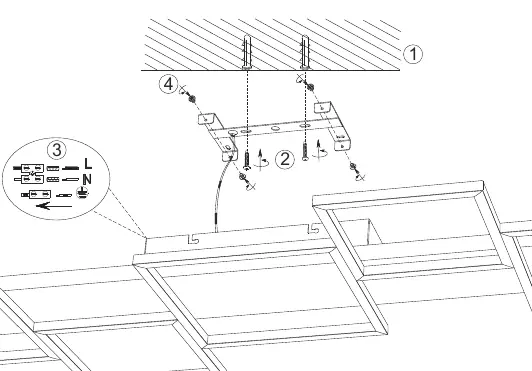

The installation process involves mounting the fixture to the ceiling and connecting the electrical wiring. Follow these steps:
- Preparation: Ensure the ceiling surface is suitable for mounting and that the power is turned off.
- Mounting: Drill holes in the ceiling according to the bracket dimensions and insert the provided wall plugs. Secure the mounting bracket to the ceiling using the screws.
- Wiring: Connect the house power supply wires to the terminal block on the lamp. Ensure the Live (L) and Neutral (N) wires are connected correctly to the corresponding terminals.
- Final Assembly: Attach the lamp housing to the mounting bracket securely.
Technical Specifications
- Voltage: 230V~50Hz
- Power Consumption: 42W
- Light Source: Integrated LED
- Protection Rating: IP20 (Indoor use only, not protected against water)
Energy Efficiency
This product contains light source(s) of energy efficiency class E.
Practical help
Common problems
Verify that the power supply is active at the circuit breaker and check that the L and N wires are securely connected to the terminal block.
Before use
- Read all safety instructions carefully.
- Ensure the power is switched off at the main fuse box.
- Verify that the ceiling structure can support the weight of the lamp.
- Check that all necessary mounting hardware is included.
