Installation manual for TRIO 341810208 LED Pendant Light
Quick installation guide for the TRIO 341810208 LED pendant light. Includes wiring instructions, mounting steps, and color temperature adjustment settings.
Quick answers from the manual
Quick answer
- The TRIO 341810208 is an LED pendant light. Installation requires mounting the bracket to the ceiling, connecting the L/N/Ground wires, and adjusting the color temperature via the DIP switch. p. 2
Key actions
- Mount the ceiling bracket. p. 2
- Connect electrical wiring. p. 2
- Adjust color temperature. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 230V~50Hz | Operating voltage | p. 2 |
| Power | 45W | Power consumption | p. 2 |
Where to find it in the PDF
- Safety Instructions p. 1
- Installation and Technical Data p. 2
- Energy Efficiency p. 3
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential safety and installation instructions for the TRIO 341810208 LED pendant light. Before beginning any installation work, ensure the power supply is disconnected. Read all safety instructions carefully to prevent electrical hazards.
Installation
The installation process involves mounting the ceiling bracket and connecting the electrical wiring. Ensure the ceiling structure can support the weight of the light fixture.

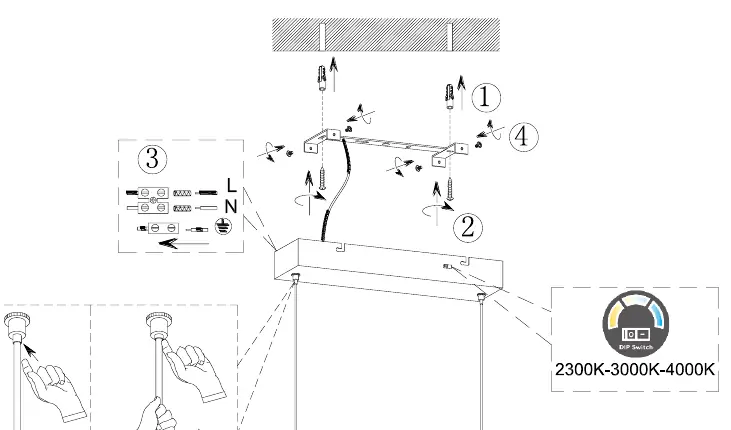

- Mounting: Secure the mounting bracket to the ceiling using appropriate screws and anchors.
- Wiring: Connect the power supply wires to the terminal block on the fixture. Ensure the Live (L), Neutral (N), and Ground (Earth) wires are connected to the corresponding terminals.
- Assembly: Attach the fixture housing to the mounted bracket and secure it in place.
DIP Switch Settings
This light fixture features an adjustable color temperature function. Use the DIP switch located on the fixture to select between three color temperatures: 2300K, 3000K, or 4000K.
Technical Specifications
- Voltage: 230V~50Hz
- Power: 45W
- Light Source: Integrated LED
- Energy Efficiency: Class E
Practical help
Common problems
Check if the power supply is connected correctly and the circuit breaker is on. Verify that the wiring at the terminal block is secure.
Adjust the DIP switch on the fixture to the desired setting (2300K, 3000K, or 4000K).
Before use
- Ensure the power supply is switched off at the main breaker.
- Verify that the ceiling can support the weight of the pendant light.
- Check that the voltage matches 230V~50Hz.
- Ensure all necessary tools for mounting are available.
- Read the safety instructions provided on page 1.
Manual page author
David Miller
Documentation analyst
Organizes user manual content into clear summaries, with attention to model details, product context, and everyday usability.
