User Manual for TRIO 242910180 LED Wall Lamp
Quick guide for the TRIO 242910180 LED Wall Lamp. Includes installation instructions, wiring diagrams, and technical specifications.
Quick answers from the manual
Quick answer
- The TRIO 242910180 is a 12W LED wall lamp. Installation requires mounting the bracket to the wall and connecting the wires to the L, N, and Ground terminals. Ensure power is off before starting. p. 2
Key actions
- Mount the bracket to the wall using the provided screws and anchors. p. 2
- Connect the electrical wires to the terminal block. p. 2
First start
- Ensure the power supply is 230V~50Hz and the circuit is off before installation. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 12W | LED power consumption | p. 2 |
| Voltage | 230V~50Hz | Operating voltage | p. 2 |
| IP Rating | IP20 | Protection level | p. 2 |
Where to find it in the PDF
- Safety Warnings p. 1
- Installation and Specs p. 2
- Energy Efficiency p. 3
Table of contents
Quick guide from the manual
This document provides installation instructions and technical specifications for the TRIO 242910180 LED Wall Lamp. Ensure you read all safety instructions before beginning the installation process.
Safety information
Before starting the installation, read the safety instructions carefully. Ensure the power supply is switched off at the circuit breaker before attempting any electrical work.
Installation

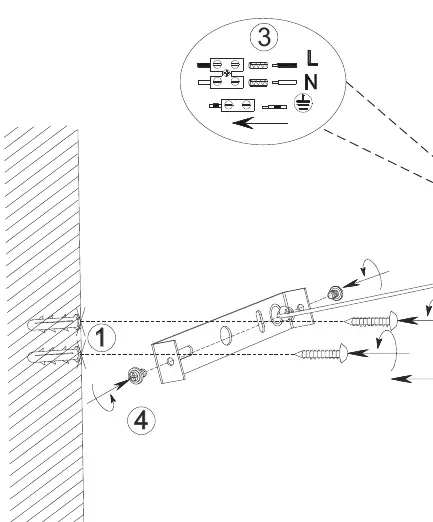

Follow the steps outlined in the installation diagram:
- Drill the necessary holes in the wall surface (1).
- Secure the mounting bracket to the wall (4).
- Connect the electrical wires to the terminal block (3). Ensure the Live (L), Neutral (N), and Ground (symbol) wires are connected correctly.
- Attach the lamp housing to the mounting bracket (2).
Technical specifications
- Voltage: 230V~50Hz
- Power: LED 12W
- Protection class: IP20
- Energy efficiency class: E
Practical help
Before use
- Ensure the main power supply is switched off before installation
- Verify the wall surface is suitable for drilling
- Check that the electrical supply matches the 230V~50Hz requirement
Images and diagrams
- Step 1: Drill holes in the wall
- Step 2: Secure the lamp to the bracket
- Step 3: Wiring connection (L, N, Ground)
- Step 4: Mount bracket to wall
