Installation Guide for TRIO Lighting 2110601xx Outdoor Wall Lamp
Step-by-step installation guide for the TRIO Lighting 2110601xx outdoor wall lamp. Includes wiring instructions, safety warnings, and technical specifications.
PDF source: Deutsch · summary: English
Quick answers from the manual
Quick answer
- The TRIO Lighting 2110601xx is an outdoor wall lamp. Installation requires mounting the bracket to the wall, connecting the electrical wires, and installing an E27 bulb (max 40W). Always turn off the power before starting. p. 2
Key actions
- Turn off power p. 2
- Install bulb p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 230V ~ 50Hz | Standard mains voltage | p. 2 |
| Bulb | 1 x E27 Max. 40W | Maximum wattage for the light source | p. 2 |
Show 1 more answers Show less
Where to find it in the PDF
- Safety Warnings p. 1
- Installation Steps p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential safety and installation instructions for the TRIO Lighting 2110601xx outdoor wall lamp. Before beginning any work, ensure the power supply is disconnected at the circuit breaker to prevent electrical shock.

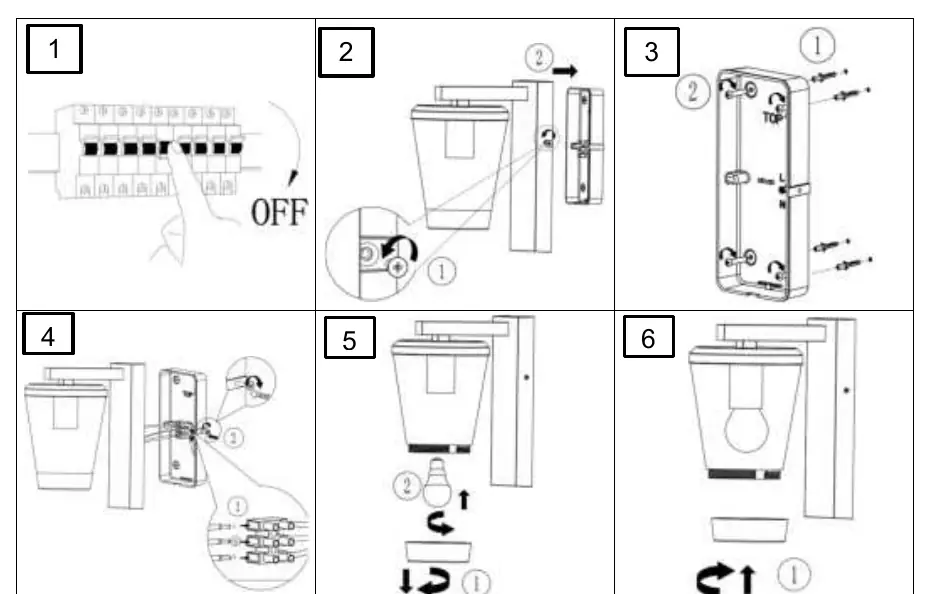

Installation
- Power Off: Switch off the circuit breaker before starting the installation.
- Prepare Bracket: Remove the mounting bracket from the lamp housing.
- Mounting: Secure the mounting bracket to the wall surface using appropriate screws.
- Wiring: Connect the electrical wires according to local regulations.
- Assembly: Attach the lamp housing to the mounted bracket.
- Bulb Installation: Insert the light bulb into the socket.
- Power On: Switch the circuit breaker back on to test the light.
Technical Specifications
- Voltage: 230V ~ 50Hz
- Bulb Type: 1 x E27 Max. 40W
- Protection Rating: IP44 (Protected against solid objects over 1mm and splashing water)
- Minimum Distance: 0.5m from illuminated objects
Practical help
Common problems
Light does not turn on
Verify that the circuit breaker is in the ON position and the bulb is correctly installed.
Before use
- Ensure the main power supply is turned off
- Verify the wall surface is suitable for mounting
- Check that the bulb used is an E27 type with a maximum of 40W
- Ensure the installation area allows for the required 0.5m clearance
