This document provides essential installation instructions for the TRIO outdoor wall light. Before beginning any installation work, ensure the power supply is disconnected at the main circuit breaker to prevent electrical shock.

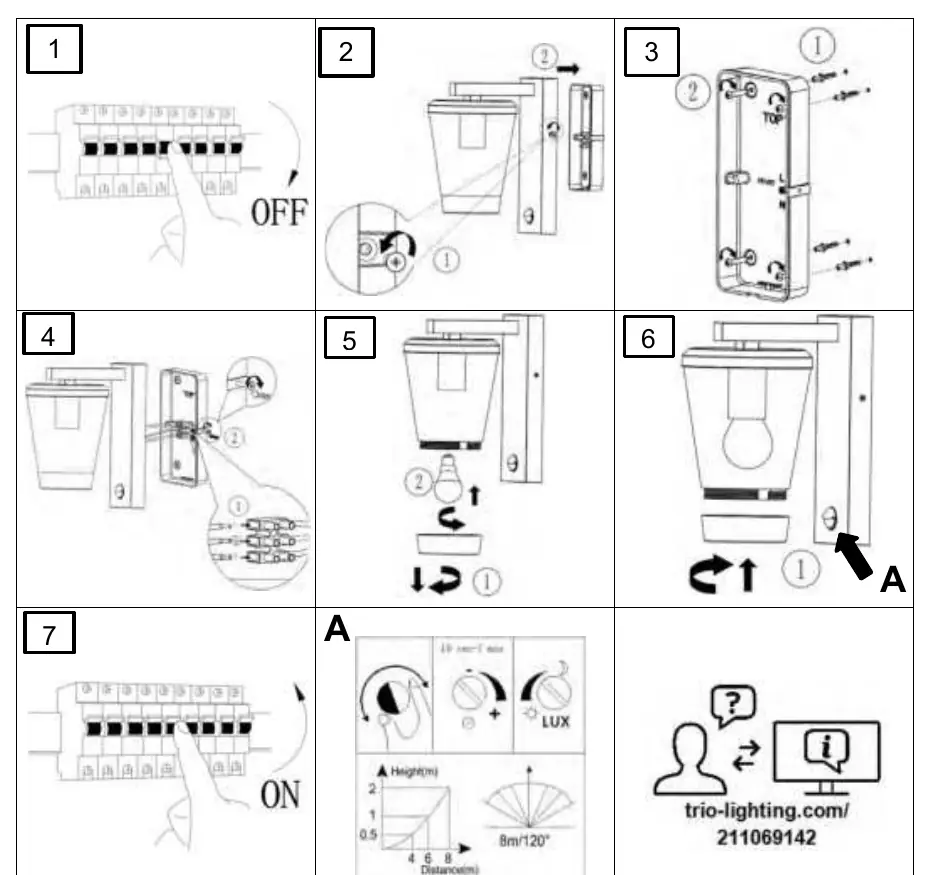

Installation Steps
- Power Off: Switch off the electricity at the circuit breaker.
- Mounting: Prepare the mounting surface and attach the wall bracket.
- Wiring: Connect the electrical wires according to local regulations.
- Securing: Fix the light fixture to the wall bracket.
- Bulb Installation: Insert the light bulb (E27, max 40W) and secure the cover.
- Sensor Adjustment: Adjust the motion sensor settings as needed.
- Power On: Switch the electricity back on at the circuit breaker.
Sensor Adjustment

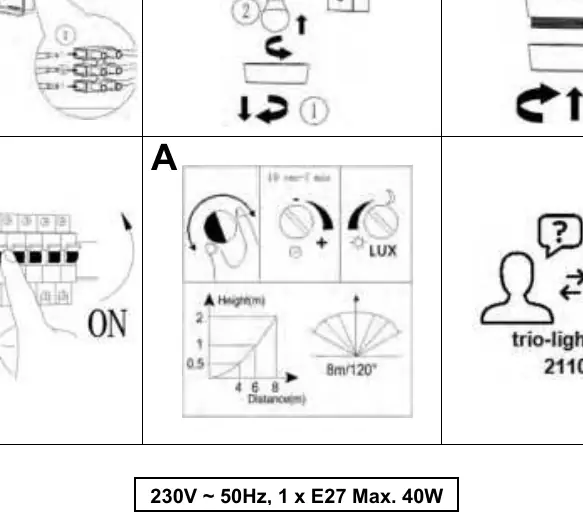

The light features an integrated motion sensor. Use the adjustment dials (labeled A in the diagram) to configure the detection range, time duration, and light sensitivity (LUX).
Technical Specifications
- Voltage: 230V ~ 50Hz
- Bulb Type: 1 x E27
- Maximum Wattage: 40W
- Protection Rating: IP44 (Protected against splashing water)
Practical help
Common problems
Check if the circuit breaker is ON and ensure the bulb is correctly installed and functional.
Adjust the LUX and time settings on the sensor dial to ensure they are configured for your environment.
Before use
- Ensure the power supply is disconnected at the circuit breaker.
- Verify the mounting surface is suitable for the fixture.
- Check that the light bulb does not exceed the maximum 40W rating.
- Confirm all electrical connections are secure.
