Installation Guide for TRIO 2020001XX Wall Light
Installation guide for the TRIO 2020001XX wall light. Includes mounting instructions for both plug-in and hardwired configurations, safety warnings, and technical specifications.
Quick answers from the manual
Quick answer
- This document provides installation instructions for the TRIO 2020001XX wall light, covering both plug-in and hardwired mounting methods. p. 2
Key actions
- Mount the wall bracket using screws and plugs. p. 2
- Install the E14 bulb. p. 2
First start
- Ensure the power is off, mount the bracket, connect the power (plug or terminal block), install the bulb, and attach the shade. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 230V~50Hz | Mains power requirements | p. 2 |
| Bulb | 1 x E14 / max. 28W | Compatible bulb type and max wattage | p. 2 |
Where to find it in the PDF
- Safety Warnings p. 1
- Installation Diagrams p. 2
Table of contents
Manual images
Click an image to enlargeImportant Safety Information
Before beginning any installation work, please read the safety instructions carefully. Ensure that the power supply is disconnected before starting the installation to prevent electrical shock.
Installation Methods
The TRIO 2020001XX wall light supports two installation methods depending on your setup:
Method A: Plug-in Installation
- Drill the necessary holes in the wall.
- Insert the wall plugs and secure the mounting bracket with screws.
- Attach the lamp fixture to the bracket.
- Install the E14 bulb.
- Attach the lamp shade.
- Plug the power cord into a wall outlet.

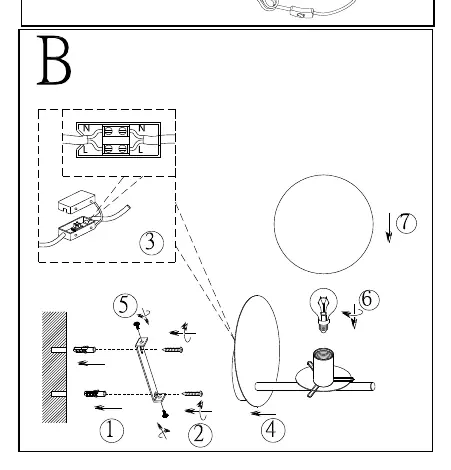

Method B: Hardwired Installation
- Drill the necessary holes in the wall.
- Insert the wall plugs and secure the mounting bracket with screws.
- Connect the wall mains wires to the terminal block on the fixture.
- Attach the lamp fixture to the bracket.
- Install the E14 bulb.
- Attach the lamp shade.
Technical Specifications
- Voltage: 230V~50Hz
- Bulb Type: 1 x E14 / max. 28W
- Protection Class: IP20 (Indoor use only)
- Minimum Distance: 0.3m from illuminated objects
- Safety Class: Class II (Double insulated)
Practical help
Common problems
Check if the bulb is properly screwed in and the power source is active.
Choose Method A if you intend to use a wall outlet (plug-in) or Method B if you are wiring directly into the wall mains.
Before use
- Ensure power is disconnected before installation
- Verify wall material is suitable for drilling
- Check that the bulb type matches E14 max 28W
- Confirm if you are using the plug-in or hardwired method
