Installation Manual for Tripp Lite SmartRack 2U Center-Mounted Shelf
Installation guide for the Tripp Lite SmartRack 2U Center-Mounted Shelf (SRSHELF2PCENTER). Includes parts list, mounting instructions, and technical specifications for 2-post rack installation.
Quick answers from the manual
Quick answer
- The Tripp Lite SmartRack 2U Center-Mounted Shelf (SRSHELF2PCENTER) is designed for 3-inch deep 2-post racks and supports equipment up to 100 lbs. p. 2
Key actions
- Mount the shelf centered in the rack using the provided 12-24 screws and cup washers. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Weight Capacity | 100 lb | Maximum load capacity | p. 2 |
| Shelf Depth | 21.5 in. | Depth of the shelf | p. 2 |
Where to find it in the PDF
- Installation Instructions p. 2
Table of contents
Manual images
Click an image to enlargeImportant Information
This document provides installation instructions for the Tripp Lite SmartRack 2U Center-Mounted Shelf (Model: SRSHELF2PCENTER). This shelf is designed specifically for installation in standard 3-inch deep 2-post racks. Ensure your rack meets these requirements before beginning installation.
Parts List
Before starting, ensure all components are present:
- A: Center-Mount 2U Shelf
- B: 12-24 Screws (x4)
- C: Cup Washers (x4)
Mounting Instructions
Follow these steps to install the shelf:
- Position the shelf centered in your standard 3-inch deep 2-post rack.
- Align the mounting flanges of the shelf with the holes on the rack rails.
- Secure the shelf to the rack using the included 12-24 screws (B) and cup washers (C).
Technical Specifications
The shelf is designed to support tower units, monitors, and other equipment with the following specifications:
- Depth: 21.5 inches
- Weight Capacity: Up to 100 lbs
- Rack Compatibility: Standard 3-inch deep 2-post racks
Practical help
Before use
- Verify the rack is a standard 2-post rack
- Ensure the rack depth is 3 inches
- Confirm you have 4 screws and 4 cup washers
- Check that the equipment to be placed on the shelf does not exceed 100 lbs
Images and diagrams

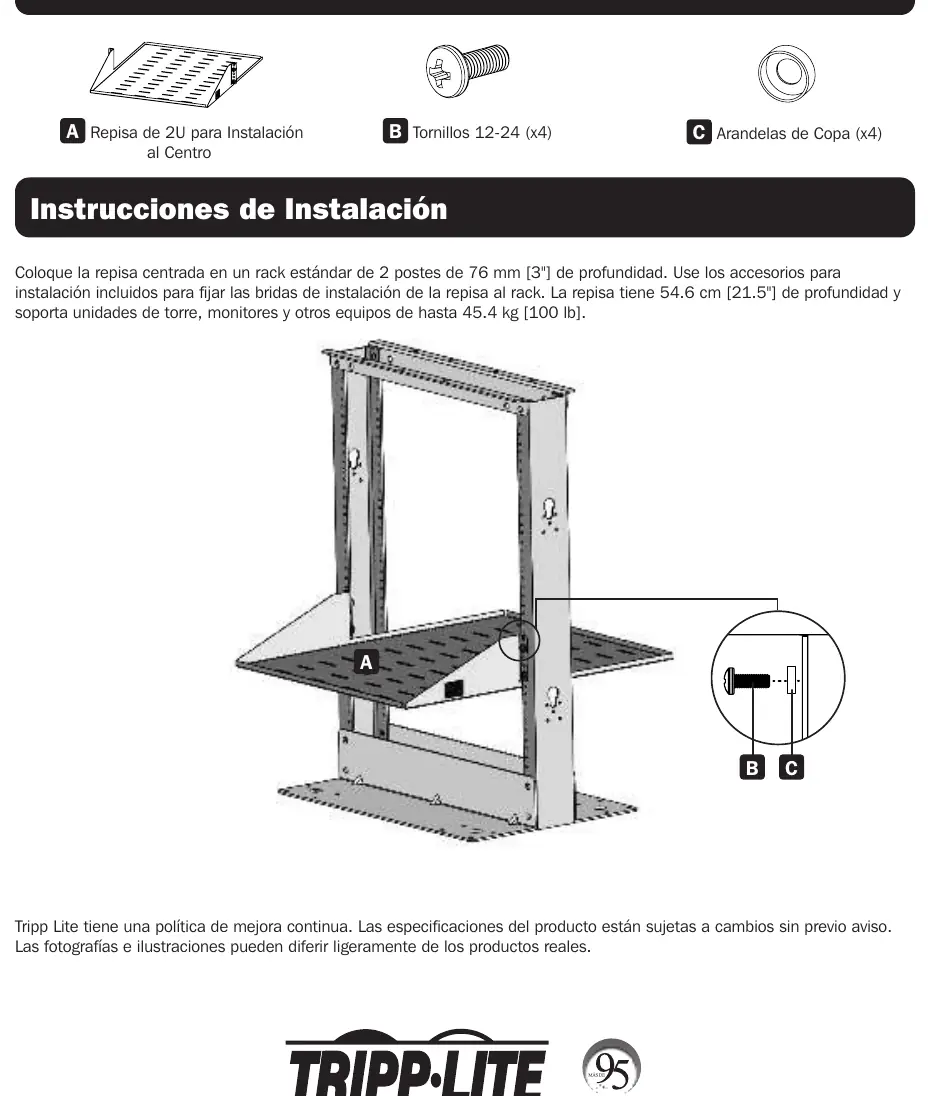

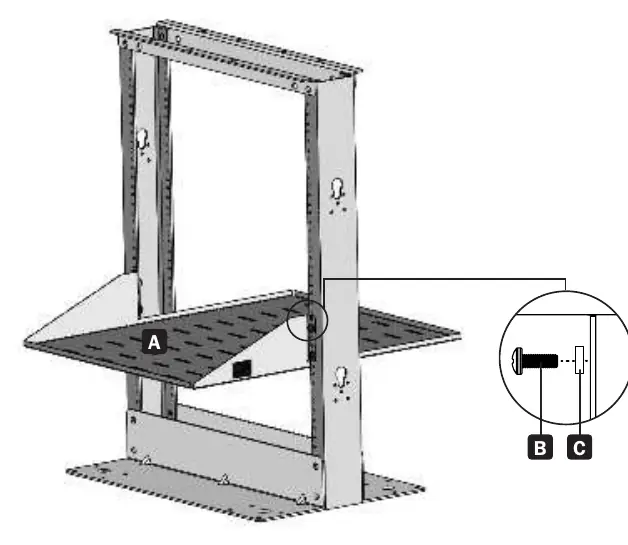

- The diagram illustrates the shelf being positioned between the two vertical rails of a 2-post rack, secured by screws and cup washers.
