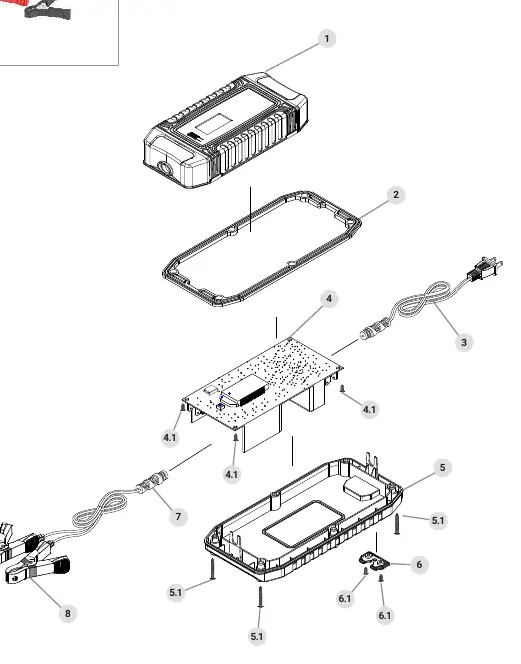

This document serves as a parts identification and service reference for the Truper 8A Battery Charger/Maintainer (Model 12V/24V, Code 104010). It provides a detailed exploded view of the device components to assist with maintenance and repair identification.
Device components
The charger consists of the following primary parts:
- Upper housing
- Sealing ring
- Power cable (18AWG 2/C, 2.3M)
- Main circuit board assembly with display
- Lower housing
- Plastic hook
- Positive and negative output cable (18AWG 2/C, 1.7M)
- Positive clamp (red)
- Negative clamp (black)
- Various Phillips screws (St3x6, St3x20, St3x7)
Service and support
For repairs, replacement parts, or technical assistance, please contact authorized Truper Service Centers or call the support line at 800-018-7873.
Manufacturer information
TRUPER, S.A. DE C.V.
Practical help
Common problems
Replace using the specified 18AWG 2/C cables (2.3M for power, 1.7M for output).
Replacement parts are available through authorized service centers using the specific part codes listed in the manual.
Before use
- Inspect the housing for cracks or damage.
- Ensure the power cable is intact and not frayed.
- Check that the positive and negative clamps are clean and free of corrosion.
- Verify the battery voltage (12V or 24V) matches the charger settings.
