Parts List for Truper ROTI-20AS Drill
Access the official parts list and exploded view diagram for the Truper ROTI-20AS 20V 1/2" drill. Identify component codes and assembly details for maintenance and repair.
Table of contents
Parts Overview
This document provides the official parts list and exploded view diagram for the Truper ROTI-20AS 20V 1/2" drill. It is designed to assist users and technicians in identifying specific internal and external components for maintenance and repair purposes.
Exploded View Diagram

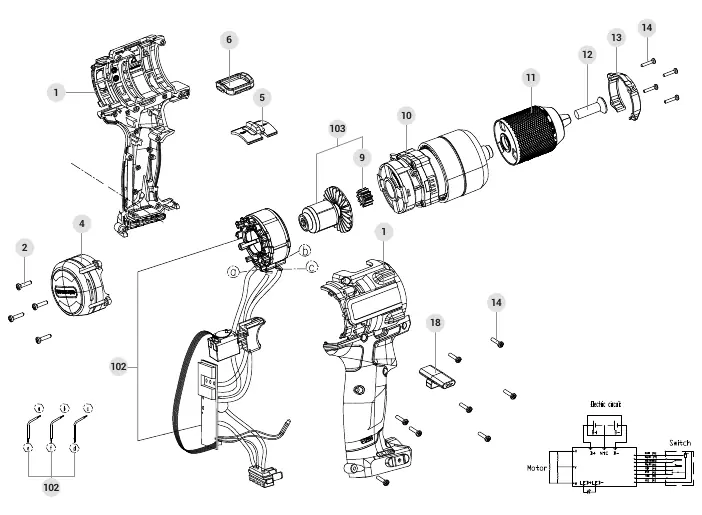

The diagram illustrates the internal assembly of the drill. Each component is marked with a number that corresponds to the parts list table, allowing for easy identification of parts such as the housing, motor components, and screws.
Parts List
The following key components are identified in the document:
- Carcasa izquierda/derecha (Code: 957664, Key: R1-ROTI-20A)
- Tornillo Phillips (St3X13) (Code: 957665, Key: R2-ROTI-20A)
- Cubierta trasera (Code: 957666, Key: R4-ROTI-20A)
- Botón de cambios (Code: 957667, Key: R5-ROTI-20A)
- Broquero (Code: 957671, Key: R11-ROTI-20A)
- Rotor (Code: 957677, Key: R103-ROTI-20A)
For further assistance or to purchase replacement parts, please contact Truper Authorized Service Centers or call 800-018-7873.
