Quick guide from the manual

This document serves as the official parts list and exploded view diagram for the Truper MOTO-A3 rotary tool (Code: 103580). It is intended for identifying internal components and ordering replacement parts through authorized Truper service centers.

Exploded view and parts list

The diagram illustrates the assembly of the rotary tool. Each component is numbered, corresponding to the table below. When ordering parts, please refer to the specific 'Código' (Code) provided in the list.

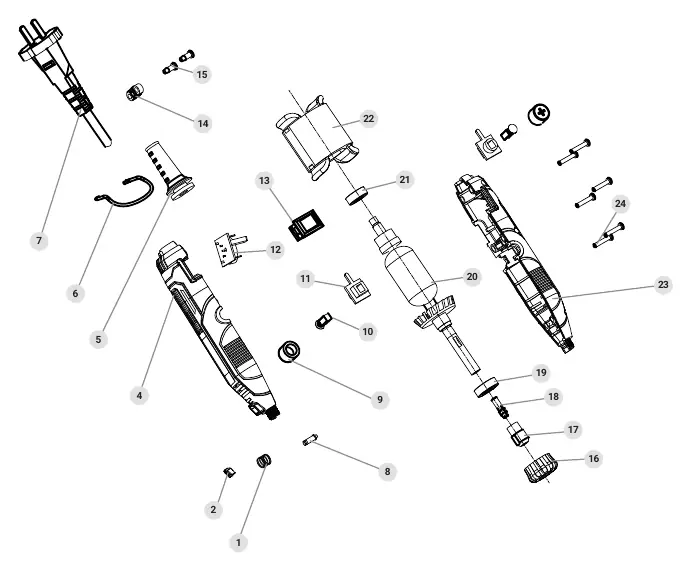

Exploded view diagram of the Truper MOTO-A3 rotary tool

1: Lock pin spring
2: Lock pin cap
4: Right housing
5: Cable protector
6: Hook
7: Power cord
8: Lock pin
9: Carbon brush cap
10: Carbon brush
11: Carbon brush holder
12: Speed regulator
13: Switch
14: Cable clamp
15: Phillips screw (ST4X12)
16: Plastic nut
17: Collet nut
18: Collet
19: Ball bearing 698
20: Armature
21: Ball bearing 606
22: Field
23: Left housing
24: Phillips screw (ST3X12)

Service and support

For all replacement parts or technical assistance, please contact the Truper Authorized Service Centers. You can reach them by calling 800-018-7873.

Manufacturer information

TRUPER, S.A. DE C.V.

Brand profile

Manufacturer website https://www.truper.com/ Support https://www.truper.com/ Manufacturer manuals https://www.truper.com/

Practical help

Common problems

Tool fails to start

Inspect the power cord (part 7) for damage and check the carbon brushes (part 10) for wear.

Speed control malfunction

Check the speed regulator (part 12) and the switch (part 13) for proper operation.

Accessory not holding

Inspect the collet (part 18) and collet nut (part 17) for damage or debris.

Before use

Ensure the power cord is securely connected and undamaged.
Verify that the collet is tightened correctly before inserting accessories.
Check that the housing screws (parts 15 and 24) are tight.
Ensure the carbon brushes are properly seated.
