Universal 120cm LED Tailgate Light Strip User Guide
Quick guide for the Universal 120cm LED Tailgate Light Strip. Includes wiring color codes for reversing, brake, turn signals, and ACC connections.
Table of contents
Important Information
This guide provides the necessary wiring configuration for the 120cm LED Tailgate Light Strip. Proper installation is required to ensure the light strip synchronizes correctly with your vehicle's driving, braking, and signaling systems.
Wiring Instructions
Connect the wires according to the following color codes to ensure correct functionality:
- Blue: Reversing light V+
- Green: Width Lamp V+
- White: Brake V+
- Yellow (L): Left Turn V+
- Yellow (R): Right Turn V+
- Red (R): ACC V+ (Accessory power)
- Black: VCC V- (Ground)

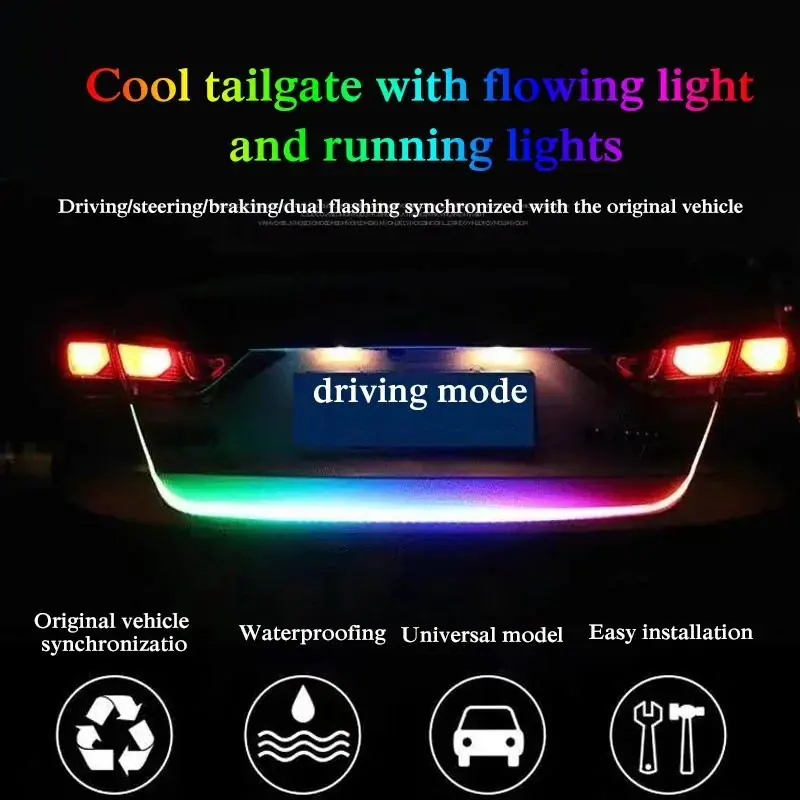

Product Features
The LED strip is designed for universal vehicle compatibility and features:
- Synchronized Lighting: Driving, steering, braking, and dual flashing modes synchronized with the original vehicle.
- Waterproofing: Suitable for exterior vehicle mounting.
- Easy Installation: Designed for simple integration with existing vehicle wiring.
Practical help
Common problems
Check the Black wire (VCC V-) for a secure ground connection and the Red wire (ACC V+) for a stable power source.
Ensure the Yellow (L) wire is connected to the left turn signal circuit and the Yellow (R) wire to the right turn signal circuit.
Verify the White wire is connected to the vehicle's brake light circuit.
Before use
- Verify the vehicle's electrical system voltage.
- Identify the correct wires for turn, brake, and reverse lights in the vehicle harness.
- Clean the tailgate surface thoroughly before adhering the light strip.
- Ensure the light strip length (120cm) fits the vehicle tailgate.
