This document provides essential instructions for the installation and safe operation of the V-TAC 100W LED Driver (SKU 10272). This device is designed specifically for magnetic track lighting systems.

V-TAC 100W LED Driver
V-TAC 100W LED Driver

Safety Warnings

  • Power Off: Always ensure the main power supply is switched off before beginning any installation work.
  • Indoor Use Only: This product is intended for indoor use only.
  • Electric Shock Risk: Exercise caution to avoid electric shock during installation.

Installation Instructions

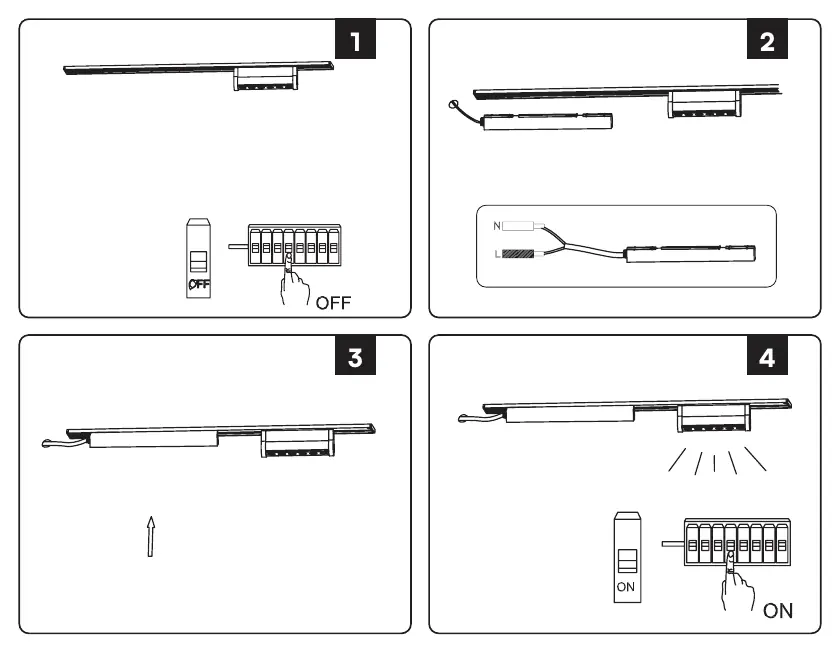

Installation steps for the LED driver
Installation steps for the LED driver
  1. Switch off the main power supply.
  2. Connect the drive power supply to the utility (185-265V).
  3. Install the driver into the guide rail groove.
  4. Switch on the power only after confirming all steps have been completed correctly.

Technical Data

  • SKU: 10272
  • Unit Color: Black
  • Description: 100W LED Driver 185-265V for magnetic track light

Support and Contact

For any queries or issues regarding the product, please contact support at [email protected]. For further product ranges, contact your local distributor or dealer. The manufacturer is V-TAC EUROPE LTD., located in Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B.

Official resources from the manual

Official resource bul.L.Karavelow

Practical help

Common problems

Risk of electric shock

Ensure the main power supply is completely switched off before starting the installation.

Driver not fitting in rail

Ensure the driver is correctly aligned with the guide rail groove before attempting to install.

Before use

  • Verify the power supply is switched off.
  • Confirm the input voltage is within the 185-265V range.
  • Ensure the installation environment is suitable for indoor use.
  • Check that the magnetic track rail is compatible with the driver.
