V-TUF 110V Backpack Vacuum Cleaner Operator Manual
Comprehensive operator manual for the V-TUF 110V industrial backpack vacuum cleaner, covering safety, assembly, operation, and maintenance.
Table of contents
Product Overview
The V-TUF 110V is a professional-grade industrial backpack vacuum cleaner designed for efficient cleaning in various environments. Its ergonomic design allows for comfortable wear, making it suitable for cleaning stairs, upholstery, and hard-to-reach areas. The unit features a manual suction control system and is compatible with various attachments, including a dusting brush, crevice tool, and an optional air-driven turbo brush.
Safety Instructions
Always read the manual before use. Key safety precautions include: never leave the vacuum unattended while plugged in, do not immerse in water, and do not use with a damaged cord or plug. The vacuum is not intended for picking up hot coals, cigarette butts, flammable liquids, toxic materials, or sharp objects like glass and nails. Ensure all filters are correctly installed before operation. The appliance should not be used by children or persons with reduced physical or mental capabilities without proper supervision.
Assembly and Operation
Before assembly, ensure the unit is unplugged. To insert the dust bag, open the canister lid using the side tabs, slide the bag into the holder, and ensure it is securely positioned. The flexible hose connects to the hose inlet by inserting and turning counter-clockwise until locked. When wearing the vacuum, ensure both shoulder straps and the waist band are properly secured to prevent injury. The power switch is located near the base of the unit.
Maintenance
Regular maintenance is essential for optimal performance. The dust bag should be replaced when full, and the shake-out bag should be cleaned outdoors regularly. The HEPA pre-motor filter should be cleaned by tapping it on a hard surface or washing it under a tap at least once a month or when suction decreases. Always allow filters to air dry for 24 hours before re-installing. For further support, visit www.V-TUF.COM.
Official resources from the manual
Practical help
Common problems
Check if the dust bag is full, clean the HEPA pre-motor filter, or check for blockages in the hose and attachments.
Ensure the power cord is securely plugged into a functional wall outlet and the power switch is in the ON position.
Verify that all filters and the dust bag are correctly installed and that the canister lid is properly locked.
Before use
- Ensure all filters are in place.
- Check that the dust bag is correctly installed.
- Inspect the power cord for any damage.
- Ensure the hose is securely locked into the inlet.
- Adjust shoulder straps and waist band for a secure fit.
Specs in practice
- HEPA Pre-Motor Filter
- High-efficiency filter that captures 99.95% of particles as small as 0.3 microns.
- Manual Suction Control
- Adjustable regulator on the hose handle to vary suction strength based on the surface being cleaned.

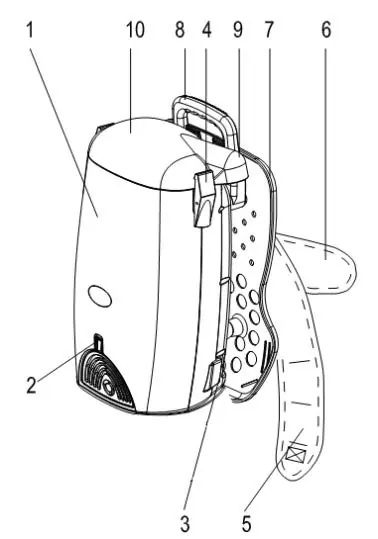

Images and diagrams
- The unit features a canister lid with side tabs for easy access to the dust bag.
- The hose inlet can be positioned on the left or right side of the canister for user preference.
- The waist band includes a tool carrier for convenient access to attachments.
Model compatibility
- The unit can be used with the Shake-Out Bag alone, but it must be cleaned after every use if no paper dust bag is installed.
- The Turbo Floor Brush is an optional accessory.
