VEVOR 150DB Train Horns Kit Installation and Maintenance Guide

Product Overview

The VEVOR 150DB Train Horns Kit is a high-performance pneumatic horn system designed for vehicle installation. The system includes an air compressor, air tank, solenoid valve, and the horn assembly. It requires a 12V power source and proper electrical integration to function safely and effectively.

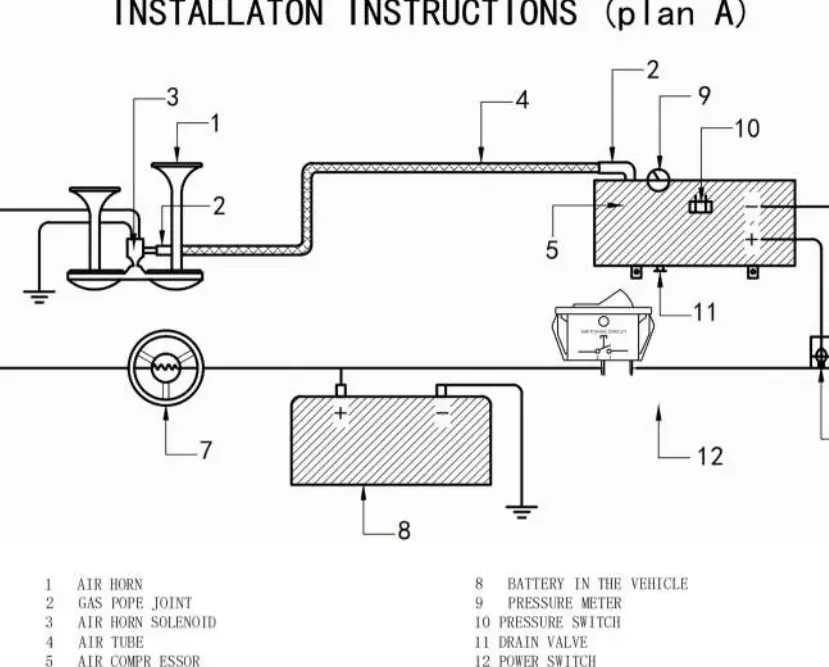

Installation Guidelines

Proper installation is critical for the longevity and performance of the system. Follow these steps for a successful setup:

• Location: Install the compressor and tank in a cool, dry area. Avoid locations exposed to excessive heat or moisture.
• Mounting: The compressor motor must be mounted on a flat surface to prevent operational issues caused by tilting.
• Pneumatic Connections: Ensure all nylon air hoses are pushed fully past the O-rings into the brass fittings to prevent leaks.
• Electrical Wiring: Use 14-gauge or thicker wire for all electrical connections. Do not use thinner wire, as the motor may draw up to 20 amps under stress.
• Circuit Protection: A 20-amp fuse must be installed between the positive 12V power source and the switch located at the air tank.
• Switching: Avoid using hot solder on the automatic pressure switch, as heat can permanently damage the internal components.

Operation and Safety

To ensure safe operation, always turn off the power switch after the vehicle is parked. Do not operate the compressor continuously for more than 10 minutes; allow it to cool down to prevent overheating and extend the motor's service life. If you are unsure about the electrical installation, consult a professional mechanic to avoid potential hazards.

Maintenance

Regular maintenance is essential to keep the system in good working order:

• Condensate Drainage: Regularly drain the condensate from the air tank. The frequency should be adjusted based on local climate conditions and usage intensity. Ensure the air pressure is below 0.1 MPa before draining.
• Lubrication: The compressor piston features a built-in lubrication system. Check the system every two weeks and add a few drops of SAE40 motor oil if necessary. Do not overfill the system with oil.

Troubleshooting and Support

If the system fails to operate, check all electrical connections, the fuse status, and the integrity of the air hoses. Ensure the pressure switch is functioning correctly. If you encounter persistent issues, seek assistance from a qualified technician.
