This guide covers the assembly and safe operation of the Vevor Bucket Bale Spear. This tool is intended for agricultural use to assist in moving hay bales.
Product description

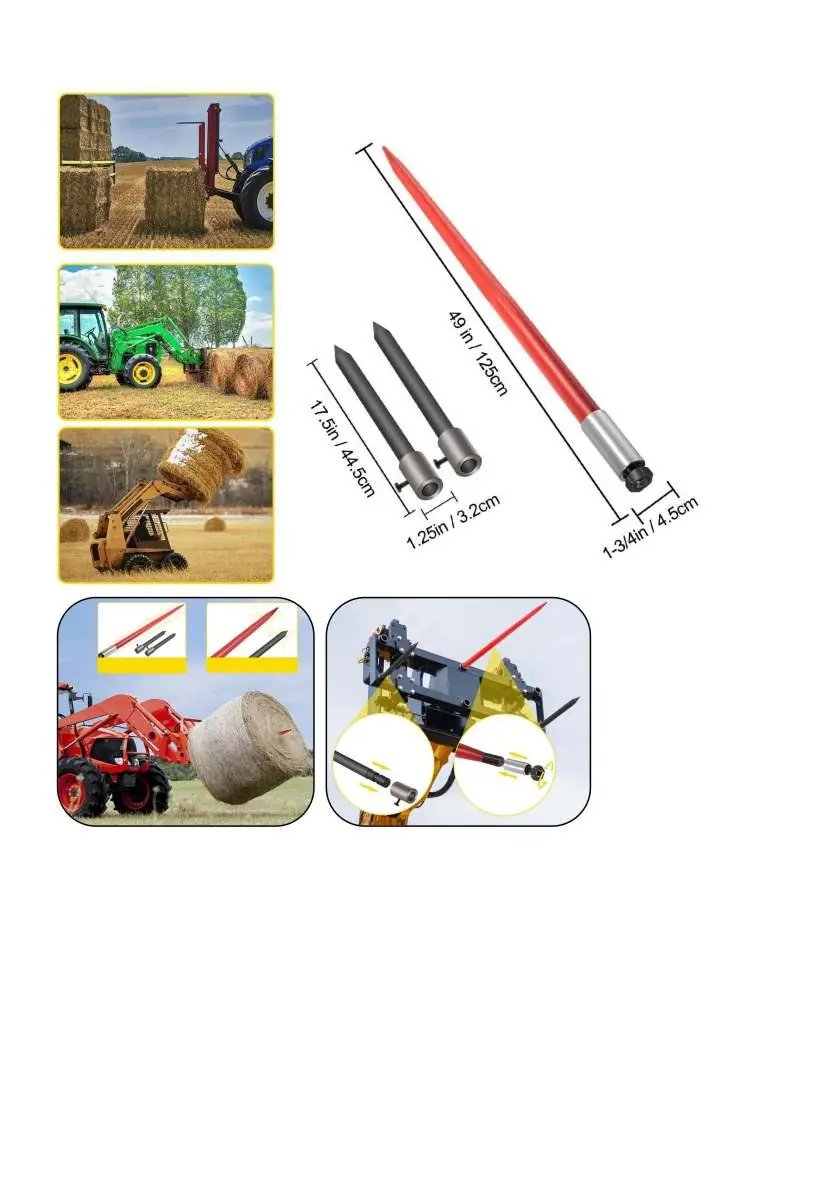

The set consists of one long spear and two shorter spears designed to be attached to a tractor bucket.
- Long spear length: 49 in / 125 cm
- Short spear length: 17.5 in / 44.5 cm
- Spear diameter: 1.25 in / 3.2 cm
Safety warnings
- Recommended loading weight: 2000 lbs.
- Working Load Limit: 3000 lbs.
- Always keep people away from the area when the machine is in motion to prevent serious injury or death.
- Warranty does not cover damages resulting from misuse, overloading, or improper installation.
Assembly and maintenance
After completing the assembly, thoroughly inspect the machine to ensure that all nuts and bolts have been completely tightened. Regular inspection is required to maintain safe operation.
Manufacturer information
VEVOR
Practical help
Common problems
Do not exceed the working load limit of 3000 lbs. Keep the load within the recommended 2000 lbs for optimal safety.
Regularly inspect and tighten all nuts and bolts after assembly and before use.
Before use
- Ensure all nuts and bolts are fully tightened.
- Verify the spear is correctly mounted to the bucket.
- Check that the load weight is within the 2000 lbs recommended limit.
- Ensure the area is clear of people before operating the machine.
