Focal IC VW 165 2-Way Coaxial Speaker User Manual
Quick guide for the Focal IC VW 165 2-way coaxial speaker kit. Includes technical specifications, compatibility information, and installation highlights for Volkswagen vehicles.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

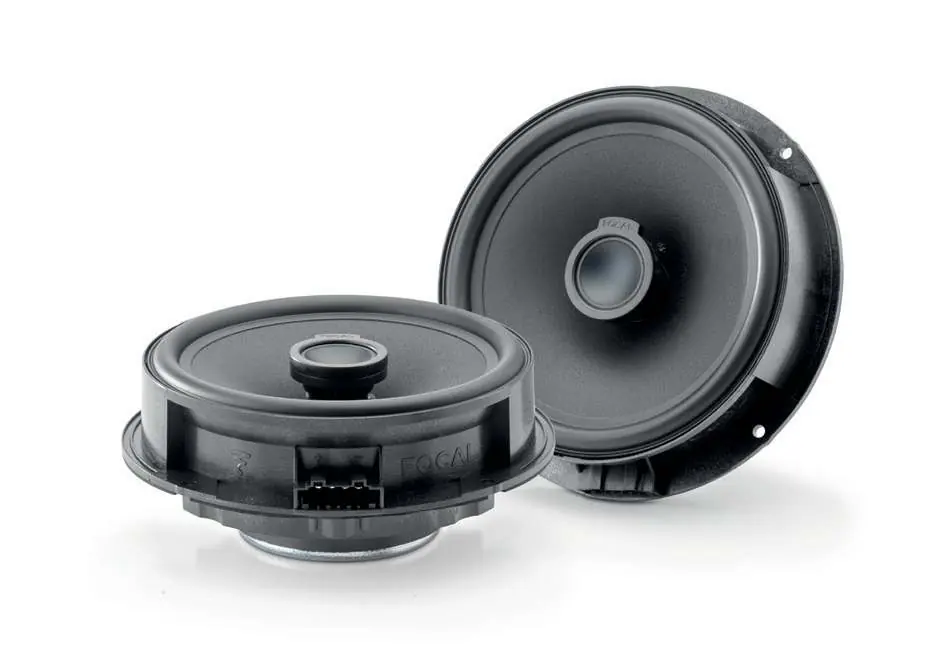

The Focal IC VW 165 is a 2-way coaxial speaker kit engineered for direct integration into Volkswagen vehicles. It utilizes a plug-and-play design, meaning no modifications to the vehicle's original wiring or structure are required.
Key Features
- Polyglass Cone: Provides well-defined midrange and bass performance.
- Aluminium Inverted Dome Tweeter: Delivers smooth and detailed treble reproduction.
- Vehicle-Dedicated Connector: Allows for easy installation without welding or cutting cables.
- Integrated Crossover: Simplifies the installation process by eliminating the need for external crossover boxes.
Compatibility
These speakers are designed for specific Volkswagen models, including the Golf 6, Passat, Polo, New Beetle, and Tiguan I. Always verify your specific vehicle compatibility before installation by visiting the official website at www.focal-inside.com.
Technical Specifications
- Type: 2-way coaxial kit
- Woofer Diameter: 165mm
- Nominal Power: 60W RMS
- Maximum Power: 120W
- Impedance: 2Ω
- Sensitivity (2.83V/1m): 93.7dB

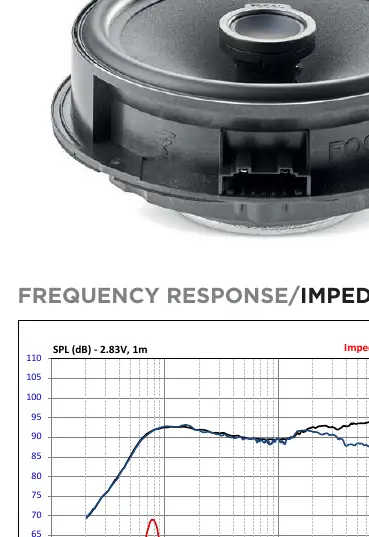

- Frequency Response: 60Hz - 20kHz
Mechanical Dimensions
The speakers feature a chassis-integrated spacer for perfect integration into original locations. Refer to the mechanical drawing for precise mounting depth and diameter requirements to ensure a proper fit.
Official resources from the manual
Practical help
Common problems
Ensure your vehicle model is listed in the compatibility guide at www.focal-inside.com.
Verify that your head unit or amplifier is stable at 2Ω impedance, as these speakers are designed for 2Ω.
Before use
- Verify vehicle compatibility at www.focal-inside.com
- Ensure the installation location matches the 165mm speaker size
- Check that the vehicle's head unit is compatible with 2Ω speakers
- Confirm no additional accessories are required for your specific VW model
